Xtreme Clutch single-plate sprung organic clutch kit for the Mazda MX-5. Designed for street-performance applications.
FITMENT Mazda MX-5 (NA6C) May 1990–January 1994 — 1.6, B64F 1597, 85 kW. Mazda MX-5 (NB6C) May 1998–October 2005 — 1.6 16V, B6MC, B6MU 1597, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ20002-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 210 Nm Clamp load: 630 kg (50% inc.)

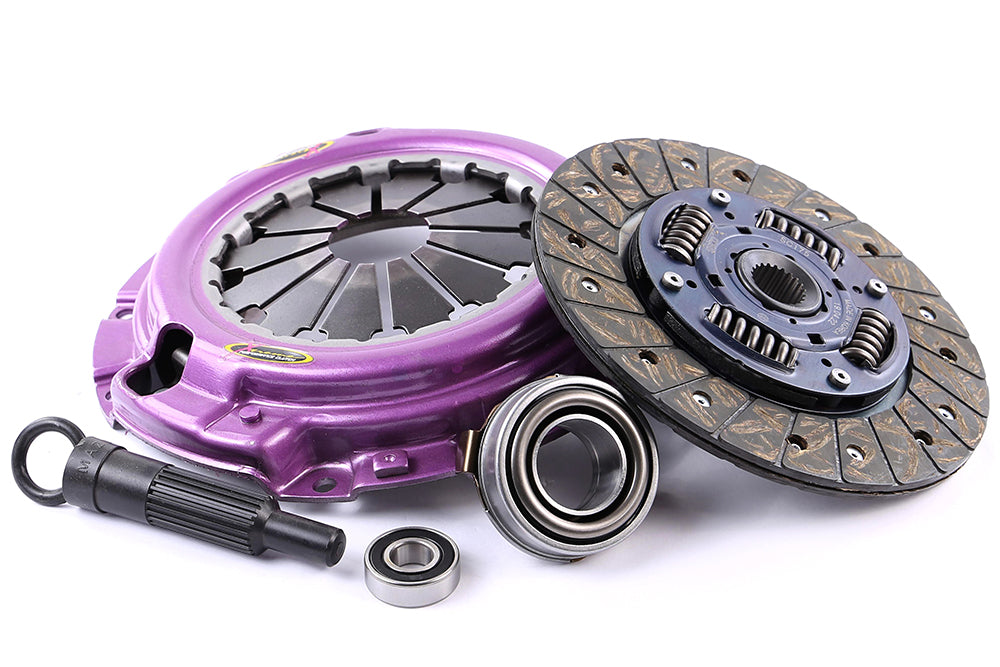

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
