Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Mazda 616 1.6 / RX-3 1.0 applications. Intended for performance street use.
FITMENT Mazda 616 1.6, June 1973–February 1978; engine NA 1586 cc, 55 kW Mazda RX-3 1.0 (S102A), September 1971–March 1973; engine 10A 982 cc, 78 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KMZ20001-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 200 mm Input spline: 22 teeth, 24.5 mm diameter Supplier-rated torque capacity: 200 Nm Flywheel step: +0.5 mm Clamp load: 540 kg (40% increase over standard)

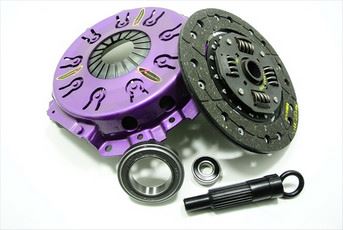

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
