Xtreme Clutch single-plate sprung ceramic clutch kit for the Mitsubishi 380. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mitsubishi 380 (DB1, DB4) April 2005–April 2008 — 3.8, 6G75 3828, 175 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI24015-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 240 mm Input spline: 23 teeth, 26 mm diameter Flywheel step: 0.0 mm Supplier-rated torque capacity: 1000 Nm

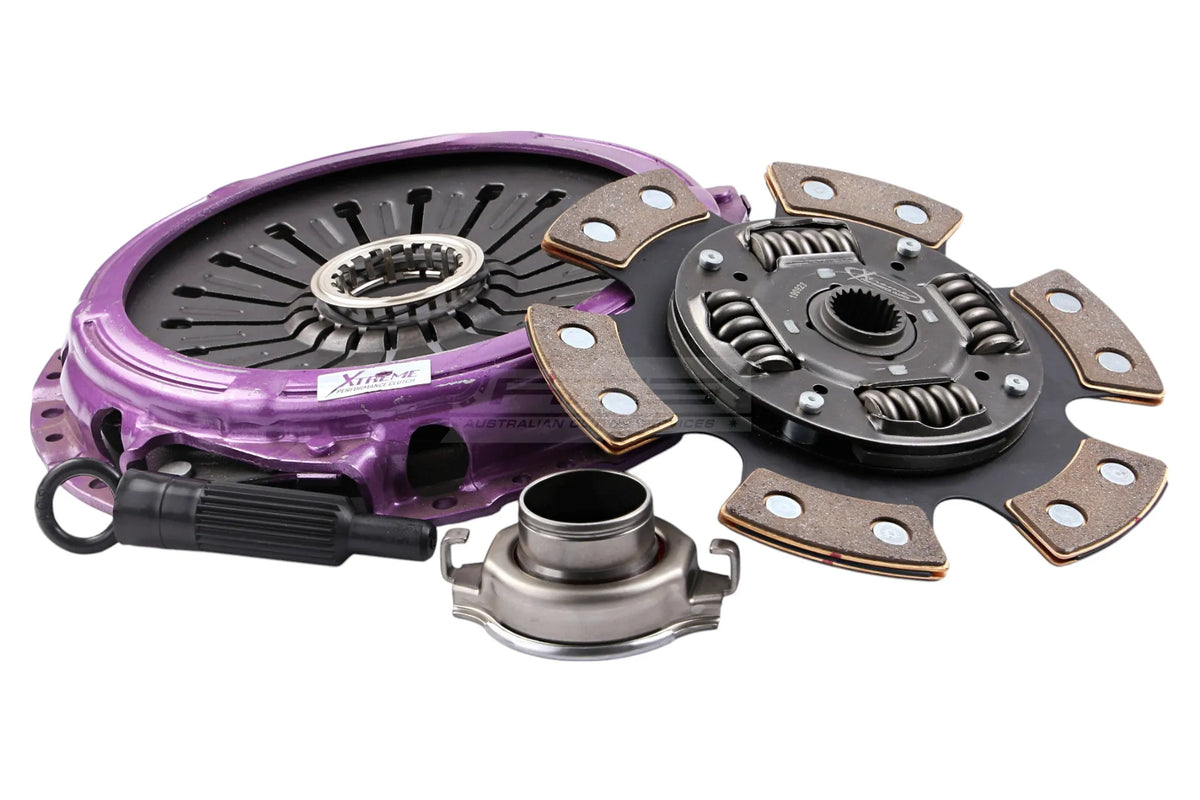

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
