Xtreme Clutch single-plate cushioned ceramic clutch kit for the Mitsubishi Galant / Magna. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mitsubishi Galant (EC5A) September 1996–October 2002 — 2.5 VR4 V6 24V, 6A13TT 2498, 206 kW. Mitsubishi Galant (EC5W) September 1996–December 2002 — 2.5 VR4 V6 24V, 6A13TT 2498, 206 kW. Mitsubishi Magna (TJ) July 2002–June 2005 — 3.5 LPG, 6G74 (SOHC 24V) 3497, 143 kW. Mitsubishi Magna (TW) October 2004–July 2005 — 3.5 LPG, 6G74 (SOHC 24V) 3497, 143 kW. Mitsubishi Magna (TH) March 1999–August 2000 — 3.5, 6G74 (SOHC 24V) 3497, 147 kW. Mitsubishi Magna (TJ) August 2000–May 2003 — 3.5, 6G74 (SOHC 24V) 3497, 147 kW. Mitsubishi Magna (TJ) August 2000–May 2003 — 3.5, 6G74 (SOHC 24V) 3497, 155 kW. Mitsubishi Magna (TW) June 2003–July 2005 — 3.5, 6G74 (SOHC 24V) 3497, 155 kW. Mitsubishi Magna (TW) October 2004–July 2005 — 3.5, 6G74 (SOHC 24V) 3497, 157 kW. Mitsubishi Magna (TJ) July 2002–May 2003 — 3.5 Series II Sports AWD, 6G74 (SOHC 24V) 3497, 159 kW. Mitsubishi Magna (TJ) August 2000–May 2003 — 3.5 Sports VR-X, 6G74 (SOHC 24V) 3497, 163 kW. Mitsubishi Magna (TW) June 2003–July 2005 — 3.5 VR-X, 6G74 (SOHC 24V) 3497, 163 kW. Mitsubishi Magna (TJ) August 2002–May 2003 — 3.5 Series II Sports VR-X, 6G74 (SOHC 24V) 3497, 163 kW. Mitsubishi Magna (TJ) August 2002–May 2003 — 3.5 Series II Ralliart, 6G74 (SOHC 24V) 3497, 180 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI24003-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 240 mm Input spline: 23 teeth, 26.1 mm diameter Flywheel step: 0.0 mm Supplier-rated torque capacity: 670 Nm Clamp load: 1000 kg (25% inc.)

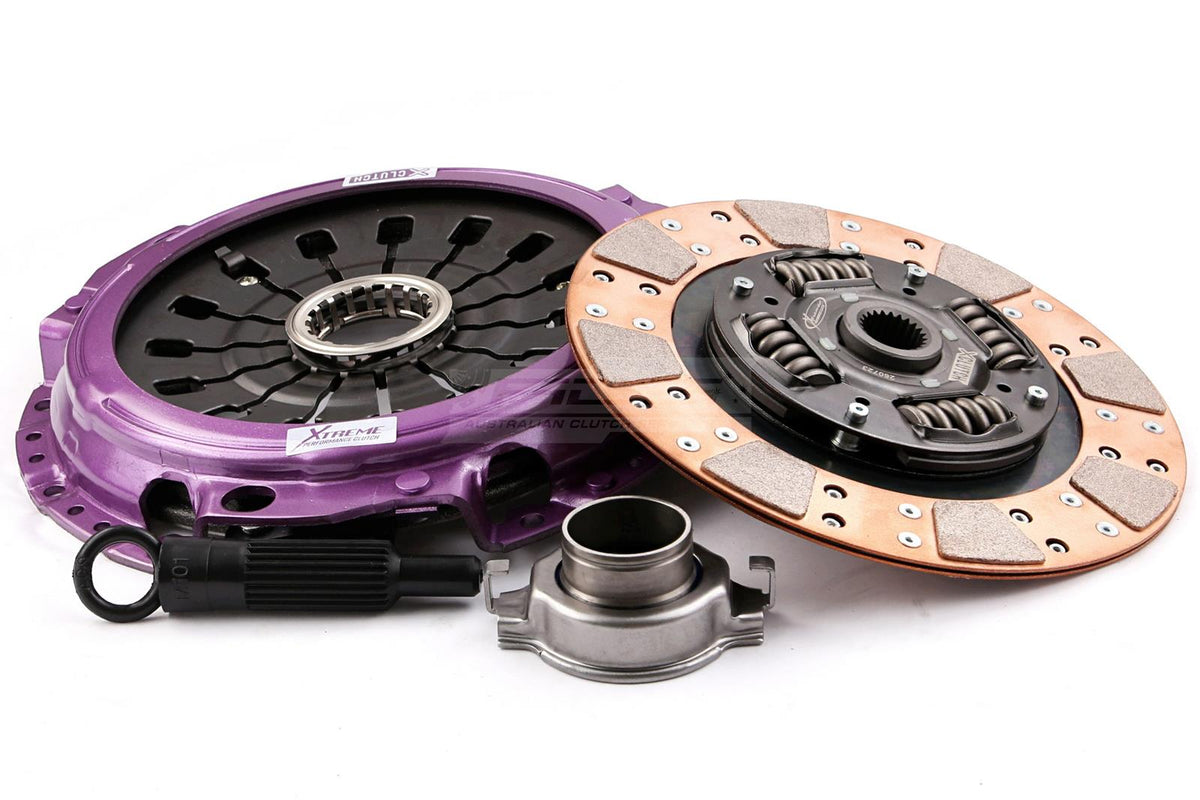

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
