Xtreme Clutch Stage 2R Sprung Ceramic Clutch Kit Mitsubishi Lancer Evo IV / V RS450 / VI (CN9A / CP9A) KMI23022-1R

Xtreme Clutch single-plate sprung ceramic clutch kit for the Mitsubishi Lancer. Designed for motorsport applications with an extra heavy-duty pressure plate.

FITMENT
Mitsubishi Lancer (CN9A) August 1996–December 1997 — EVO IV, 4G63 Turbo 1997, 206 kW.
Mitsubishi Lancer (CP9A) January 1998–June 1998 — EVO V - RS450 Ralliart, 4G63 Turbo 1997, 336 kW.
Mitsubishi Lancer (CP9A) January 1999–February 2001 — EVO VI, 4G63 Turbo 1997, 207 kW.
Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.

SPECIFICATIONS
Part number: KMI23022-1R
Stage: 2R
Construction: single plate
Friction material: sprung ceramic
Disc diameter: 230 mm
Input spline: 23 teeth, 26.1 mm diameter
Flywheel step: 0.0 mm
Supplier-rated torque capacity: 880 Nm
Clamp load: 1300 kg

PURCHASED PARTS PACKAGE

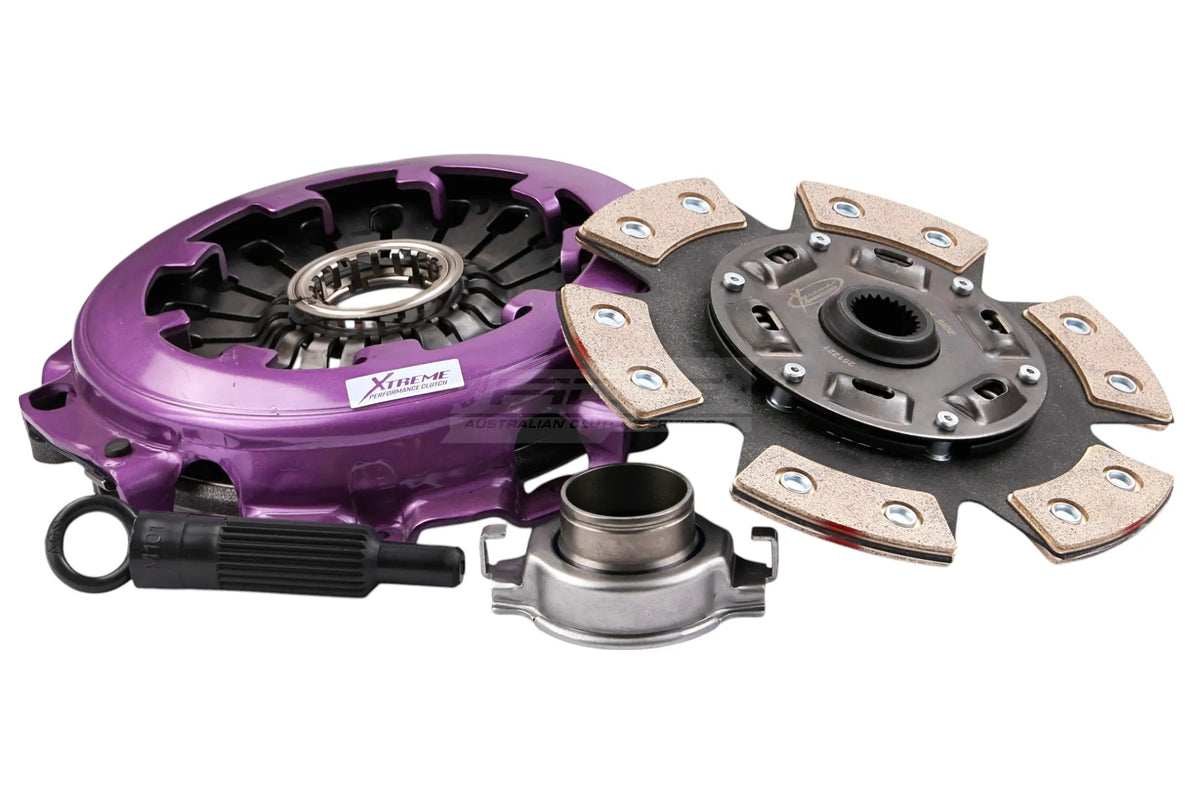

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.

INSTALLATION AND USE
Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
