Xtreme Clutch 230mm Sprung Organic Clutch Kit Mitsubishi Lancer Evo IV / V / VI KMI23022-1A

Xtreme Clutch 230 mm sprung organic single-plate clutch kit for the listed Mitsubishi Lancer Evolution IV, V and VI manual applications.

FITMENT
Mitsubishi Lancer Evolution IV CN9A, August 1996–December 1997; 4G63 Turbo, 1997 cc petrol, 206 kW.
Mitsubishi Lancer Evolution V RS450 Ralliart CP9A, January 1998–June 1998; 4G63 Turbo, 1997 cc petrol, 336 kW.
Mitsubishi Lancer Evolution VI CP9A, January 1999–February 2001; 4G63 Turbo, 1997 cc petrol, 207 kW.
For matching manual gearboxes with the pull-type release arrangement only. The Evolution V entry is the specific listed RS450 Ralliart application; it does not establish fitment to every Evolution V. Match the gearbox input spline, release bearing and existing flywheel. Not for other Evolution generations, automatic transmissions or engine and gearbox swaps.

SPECIFICATIONS
Part number: KMI23022-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 230 mm
Input spline: 23 teeth, 26.1 mm diameter
Supplier-specified clamp load: 1150 kg (20% inc.)
Flywheel step: flat (0 mm)
Release arrangement: pull type
Recommended use: street performance

PURCHASED PARTS PACKAGE

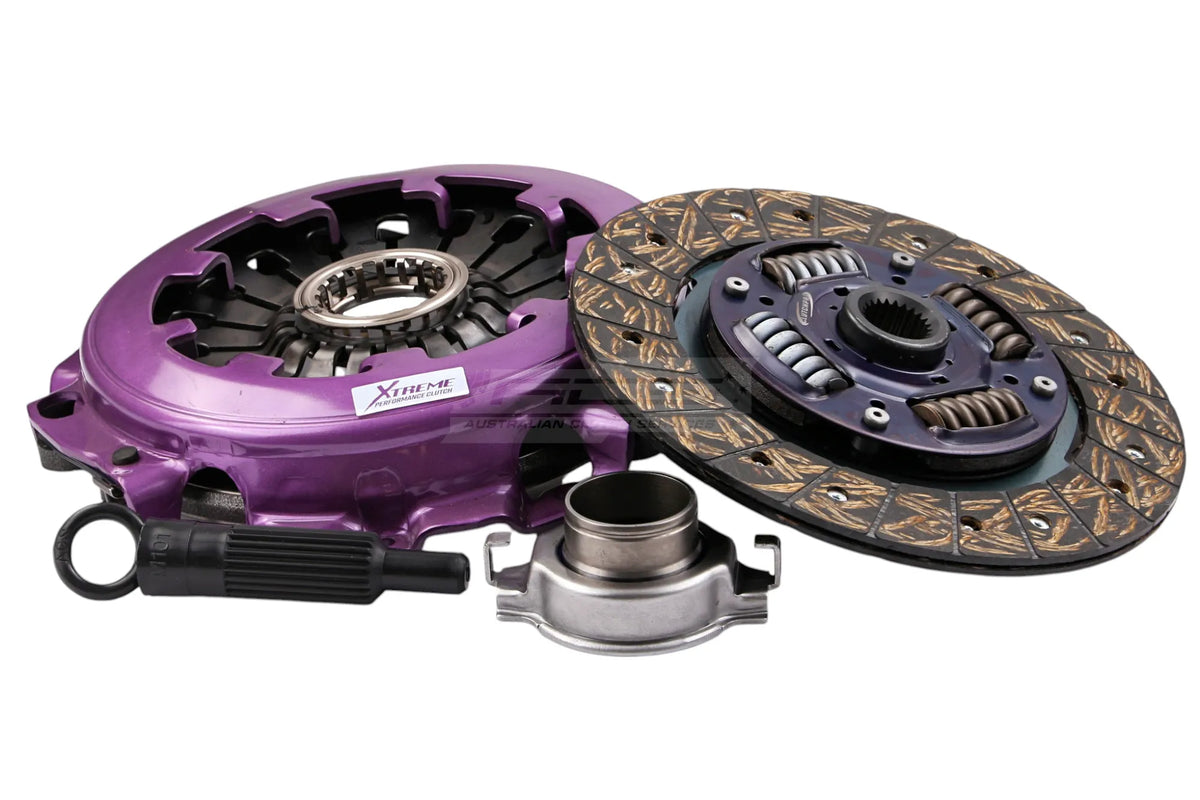

Heavy-duty pressure plate, sprung organic friction disc, release bearing, and alignment tool. Flywheel is not included.

INSTALLATION AND USE
Follow the supplied kit-specific instructions and the manufacturer Mitsubishi pull-type clutch fitting bulletin and pull-type release bearing removal guidance. Correct release-bearing engagement is essential. Follow the manufacturer bedding-in guidance. Organic friction material is intended for progressive road engagement.
