Xtreme Clutch single-plate sprung organic clutch kit for the Mitsubishi Magna. Designed for street-performance applications.
FITMENT Mitsubishi Magna (TR) October 1991–February 1994 — 2.6, 4G54 2555, 85 kW. Mitsubishi Magna (TS) February 1994–April 1996 — 2.6, 4G54 2555, 85 kW. Mitsubishi Magna (TS) March 1994–April 1996 — 2.6, 4G54 2555, 98 kW. Mitsubishi Magna (TR) October 1991–February 1994 — 2.6, 4G54 2555, 96 kW. Mitsubishi Magna (TR) April 1991–February 1994 — 2.6, 4G54 2555, 98 kW. Mitsubishi Magna (TS) February 1994–April 1996 — 2.6, 4G54 2555, 98 kW. Mitsubishi Magna (TR) May 1991–February 1994 — 2.6, G54B 2554, 114 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI23003-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 225 mm Input spline: 20 teeth, 22.4 mm diameter Flywheel step: -1.0 mm (0.04 inch) Supplier-rated torque capacity: 320 Nm Clamp load: 750 kg (30% inc.)

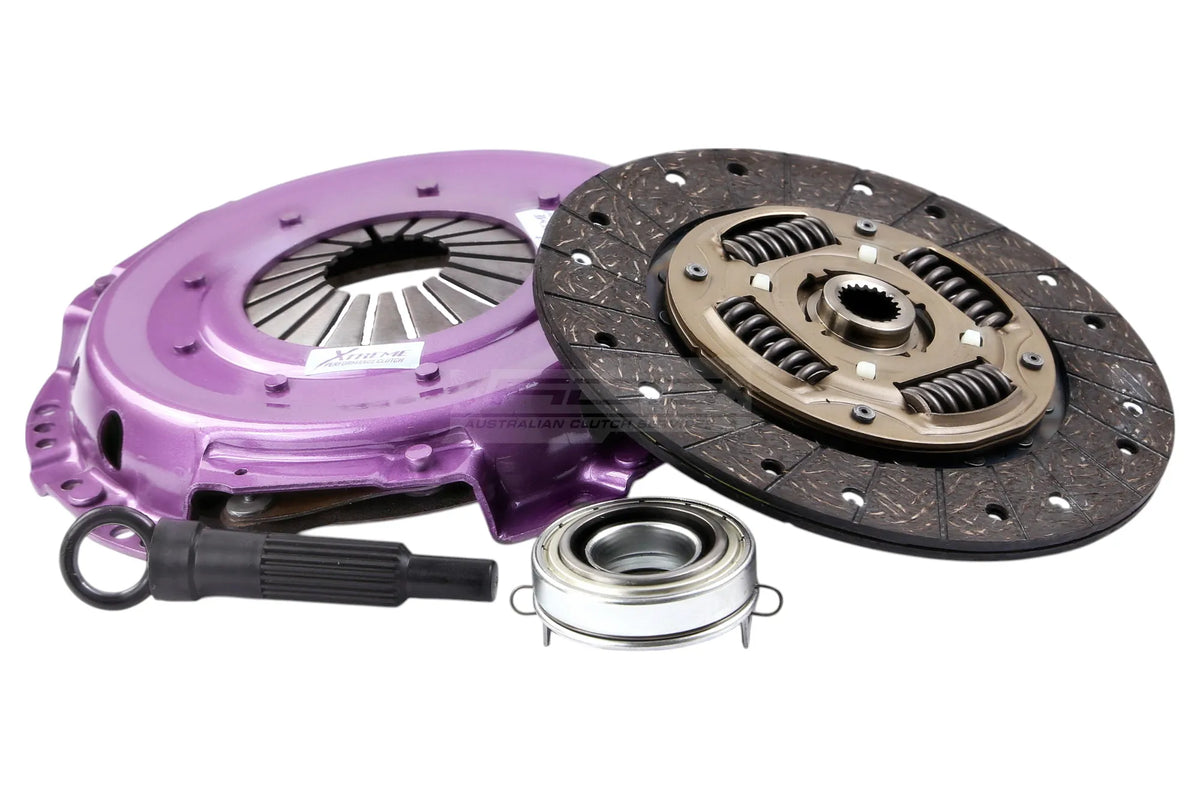

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
