Xtreme Clutch 240 mm cushioned ceramic single-plate clutch kit with flywheel for the listed Lotus Evora and Exige 3.5 manual applications.
FITMENT Lotus Evora 3.5, 2009–2016; 2GR-FE, 3456 cc petrol, 206 kW. Lotus Evora S 3.5, December 2010–April 2016; 2GR-FE, 3456 cc petrol, 258 kW. Lotus Exige 3.5, 2012–2021; 2GR-FE, 3456 cc petrol. Manual transmission only. Match the listed 2GR-FE engine, gearbox and application; not for IPS / automatic gearboxes or four-cylinder Lotus models.
SPECIFICATIONS Part number: KLT24530-1C Construction: single plate Friction disc: cushioned ceramic Disc diameter: 240 mm Input spline: 21 teeth, 29.8 mm diameter Supplier-rated torque capacity: 910 Nm Flywheel step: -9.53 mm Recommended use: track use

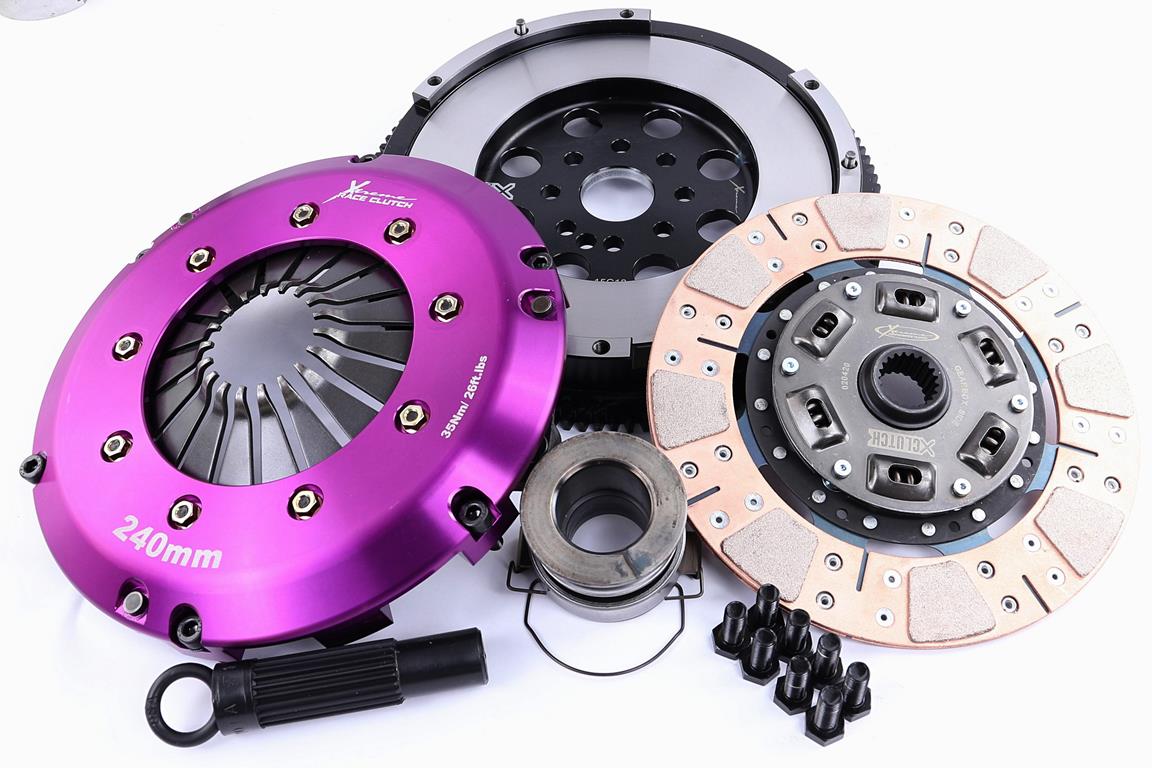

PURCHASED PARTS PACKAGE Heavy-duty pressure plate and cushioned ceramic friction disc, matching flywheel, release bearing, bolts, alignment tool and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the chassis, engine code, gearbox input spline and release system before ordering. Fit the supplied clutch and flywheel as a matched assembly and follow the installation instructions and manufacturer bedding-in guidance. This motorsport clutch can engage more abruptly than an original road clutch. The supplier torque rating does not establish a safe limit for other drivetrain components.
