Xtreme Clutch Stage 2 cushioned ceramic clutch kit for the listed Honda Accord 2.0 (CL7) applications. Intended for motorsport applications requiring increased torque and heat capacity.
FITMENT Honda Accord Gen. VII / 2.0 (CL7), February 2003–May 2008; engine K20A6, K20Z2 1998 cc, 114 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KHN22024-1C Stage: 2 Construction: single plate Friction disc: cushioned ceramic Disc diameter: 220 mm Input spline: 24 teeth, 26 mm diameter Supplier-rated torque capacity: 540 Nm Clamp load: 820 kg

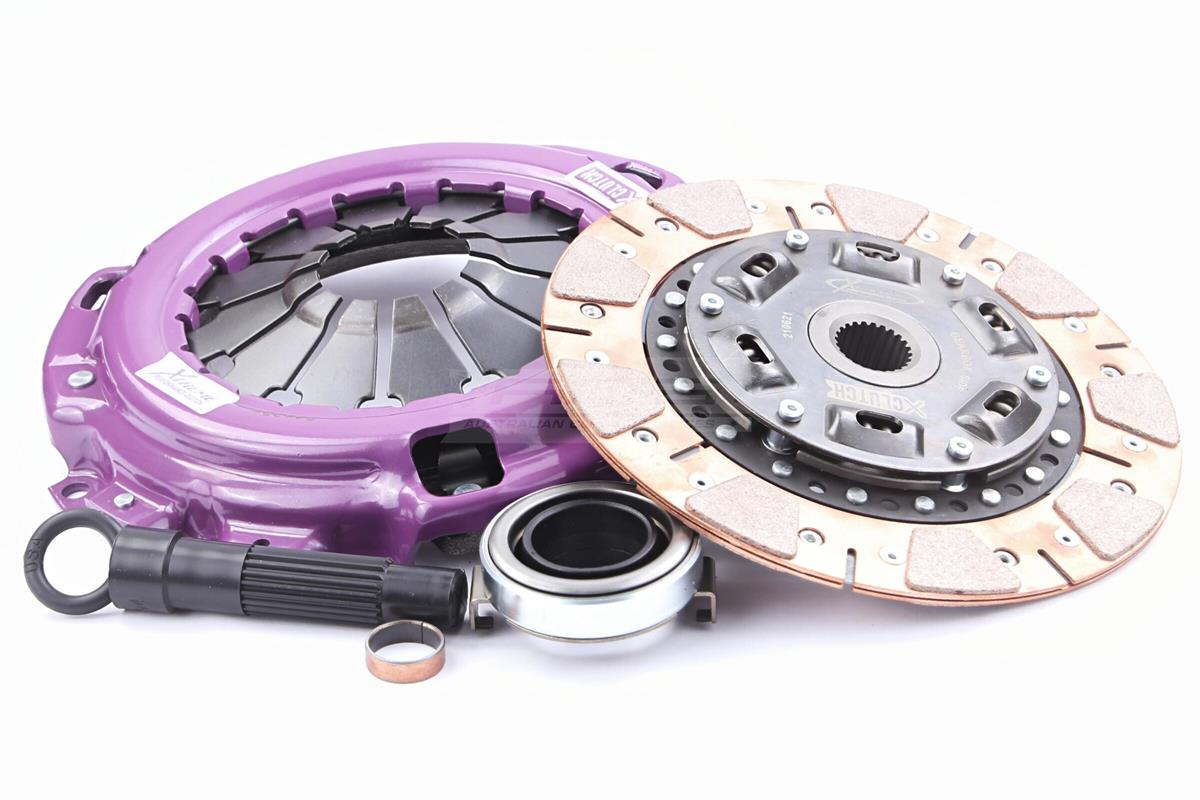

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, cushioned ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
