Xtreme Clutch 220 mm heavy-duty organic single-plate clutch kit for the listed Honda Civic and CRX 1.6 VTi manual applications.
FITMENT Honda CRX III 1.6 i VTi EG2, March 1992–December 1998; B16A2 / B16A3, 1595 cc petrol, 118 kW. Honda Civic V 1.6 i VTi EG9 and 1.6 VTi 16V EG6, October 1991–November 1995; B16A2, 1595 cc petrol, 118 kW. Listed manual-transmission applications only. Match the engine code, gearbox input spline, existing flywheel and release system. These entries do not establish fitment to every Civic or CRX, other engines, automatic transmissions or gearbox conversions.
SPECIFICATIONS Part number: KHN22007-1T Construction: single plate Friction material: organic Disc diameter: 220 mm Input spline: 24 teeth, 26 mm diameter Flywheel step: +2.75 mm Recommended use: street performance

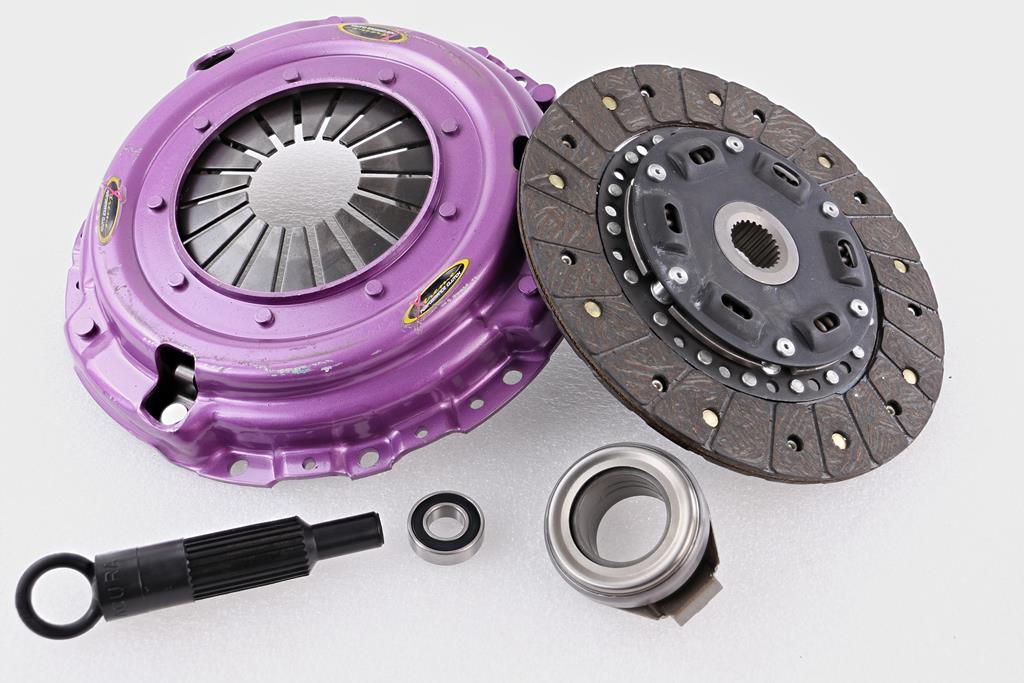

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, organic friction disc, release bearing, pilot bearing and alignment tool, as shown in the original supplier photograph. Flywheel and concentric slave cylinder (CSC) are not included.
INSTALLATION AND USE Match the original clutch and flywheel configuration before fitting. Follow the supplied kit-specific installation and bedding-in instructions. Organic friction material is intended for progressive road engagement.
