Xtreme Clutch single-plate sprung organic clutch kit for the Honda Civic / CRX. Designed for street-performance applications.
FITMENT Honda CRX (EG2) March 1992–December 1998 — 1.6 i VTi, B16A2, B16A3 1595, 118 kW. Honda Civic (EG9) October 1991–November 1995 — 1.6 i VTi, B16A2 1595, 118 kW. Honda Civic (EG6) October 1991–November 1995 — 1.6 VTi 16V, B16A2 1595, 118 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN22007-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 220 mm Input spline: 24 teeth, 26 mm diameter Flywheel step: +2.75 mm (0.108 inch) Supplier-rated torque capacity: 270 Nm Clamp load: 700 kg (45% inc.)

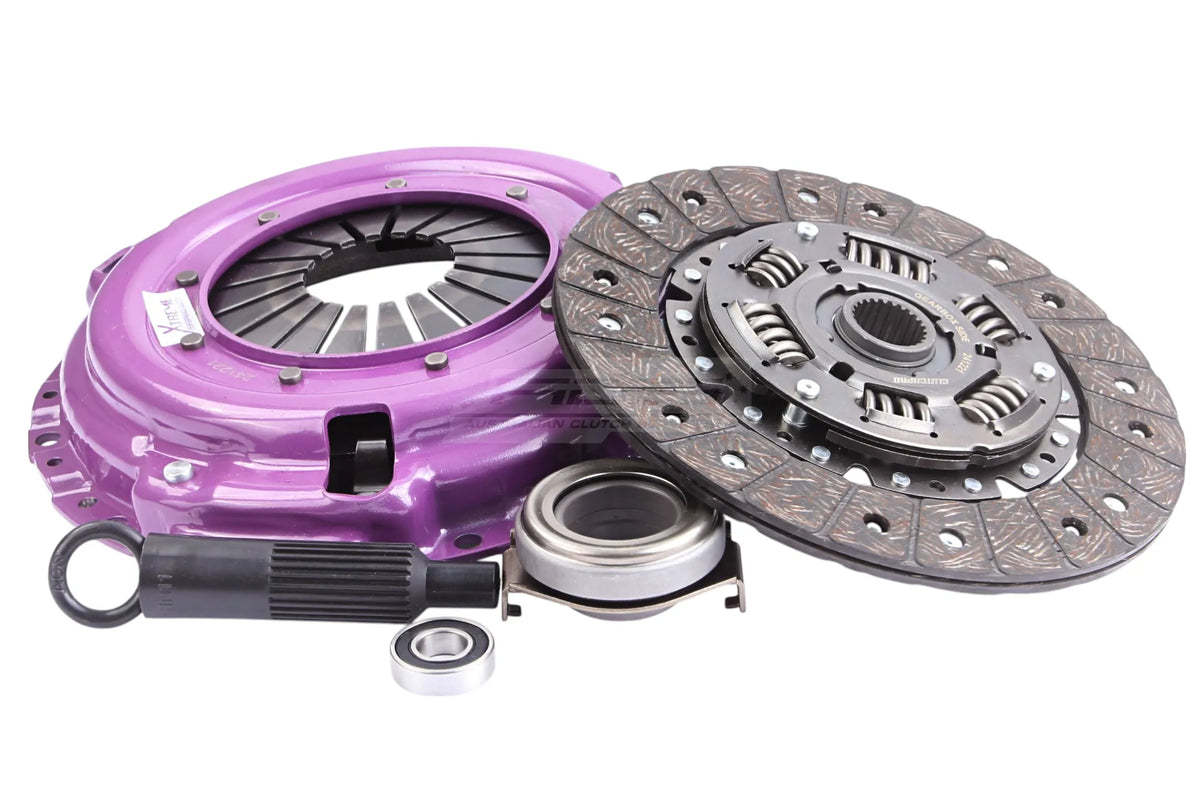

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
