Xtreme Clutch Stage 2 Cushioned Ceramic Clutch Kit Honda CR-V / Civic / Domani / Integra / Orthia / Partner (RD1 / RD3 / MC2 / MB6 / EK9 / EK4 / EM1 / MA5 / DC2 / DB7 / DB8 / EL1 / EY4 / EL2 / EL3) KHN22005-1C

Xtreme Clutch single-plate cushioned ceramic clutch kit for the Honda CR-V / Civic / Domani / Integra / Orthia / Partner. Designed for track applications requiring increased heat and torque capacity.

FITMENT
Honda CR-V (RD1) April 1999–February 2002 — 2.0, B20Z1 1973, 98 kW.
Honda CR-V (RD1 / RD3) October 1995–December 2001 — 2.0 16V 4WD, B20B 1973, 94 kW.
Honda CR-V (RD1 / RD3) January 1999–February 2002 — 2.0 16V 4WD, B20Z1 1973, 108 kW.
Honda Civic (MC2) April 1998–February 2001 — 1.8 16V, B18C4 1797, 124 kW.
Honda Civic (MB6) January 1997–February 2001 — 1.8 16V, B18C4 1797, 124 kW.
Honda Civic (EK9) August 1997–September 2000 — 1.6 VTEC Type R, B16B 1595, 136 kW.
Honda Civic (EK4) November 1995–February 2001 — 1.6 VTi, B16A2 1595, 118 kW.
Honda Civic (EM1) April 1999–December 2000 — 1.6 i VTEC, B16A2 1595, 118 kW.
Honda Domani (MA5) October 1992–December 1997 — 1.8, B18B6 1834, 103 kW.
Honda Integra (DC2) July 1993–November 2001 — 1.8, B18B1 1834, 101 kW.
Honda Integra (DC2) July 1993–November 2001 — 1.8, B18B2 1834, 107 kW.
Honda Integra (DC2) September 1993–August 2001 — 1.8 SiR, B18C 1797, 132 kW.
Honda Integra (DC2) November 1997–October 2001 — 1.8 Type-R, B18C6 1797, 140 kW.
Honda Integra (DC2) September 1993–August 2001 — 1.8 Type-R, B18C1 1797, 147 kW.
Honda Integra (DC2) July 1993–November 1999 — 1.8 VTiR, B18C2 1797, 125 kW.
Honda Integra (DC2) July 1993–November 1999 — 1.8 VTiR, B18C1 1797, 127 kW.
Honda Integra (DB7) September 1993–August 2001 — 1.8 ESI, B18B2 1834, 107 kW.
Honda Integra (DB7) September 1993–August 2001 — 1.8, B18C3 1797, 147 kW.
Honda Integra (DB8) September 1993–August 2001 — 1.8 VTEC, B18C 1797, 132 kW.
Honda Orthia / Partner (EL1 / EY4) October 1995–September 2001 — 1.8, B18B6 1834, 103 kW.
Honda Orthia / Partner (EL2) October 1995–September 2001 — 2.0, B20B 1973, 110 kW.
Honda Orthia / Partner (EL3) October 1995–September 2001 — 2.0 4WD, B20B 1973, 110 kW.
Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.

SPECIFICATIONS
Part number: KHN22005-1C
Stage: 2
Construction: single plate
Friction material: cushioned ceramic
Disc diameter: 220 mm
Input spline: 24 teeth, 26 mm diameter
Flywheel step: +2.75 mm (0.108 inch)
Supplier-rated torque capacity: 410 Nm
Clamp load: 635 kg (45% inc.)

PURCHASED PARTS PACKAGE

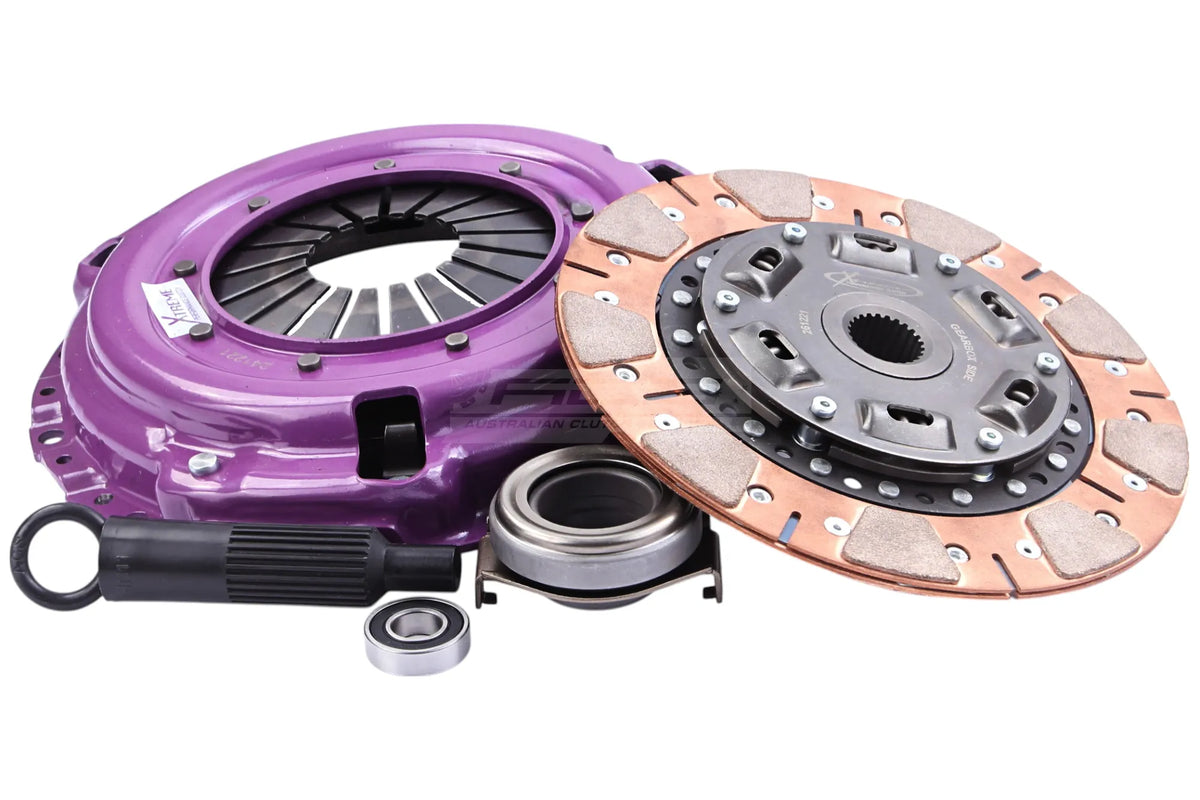

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.

INSTALLATION AND USE
Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
