Xtreme Clutch single-plate sprung ceramic clutch kit for the Honda Civic. Designed for track applications requiring increased heat and torque capacity.
FITMENT Honda Civic (ES1) December 2000–September 2005 — 1.7, D17A2, D17A5, D17Z3 1668, 96 kW. Honda Civic (ES1) October 2000–December 2005 — 1.7, D17Z1 1668, 88 kW. Honda Civic (ES1) January 2001–April 2006 — 1.7, D17A2 1668, 96 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN21007-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 212 mm Input spline: 20 teeth, 22 mm diameter Flywheel step: -1.5 mm (0.06 inch) Supplier-rated torque capacity: 400 Nm

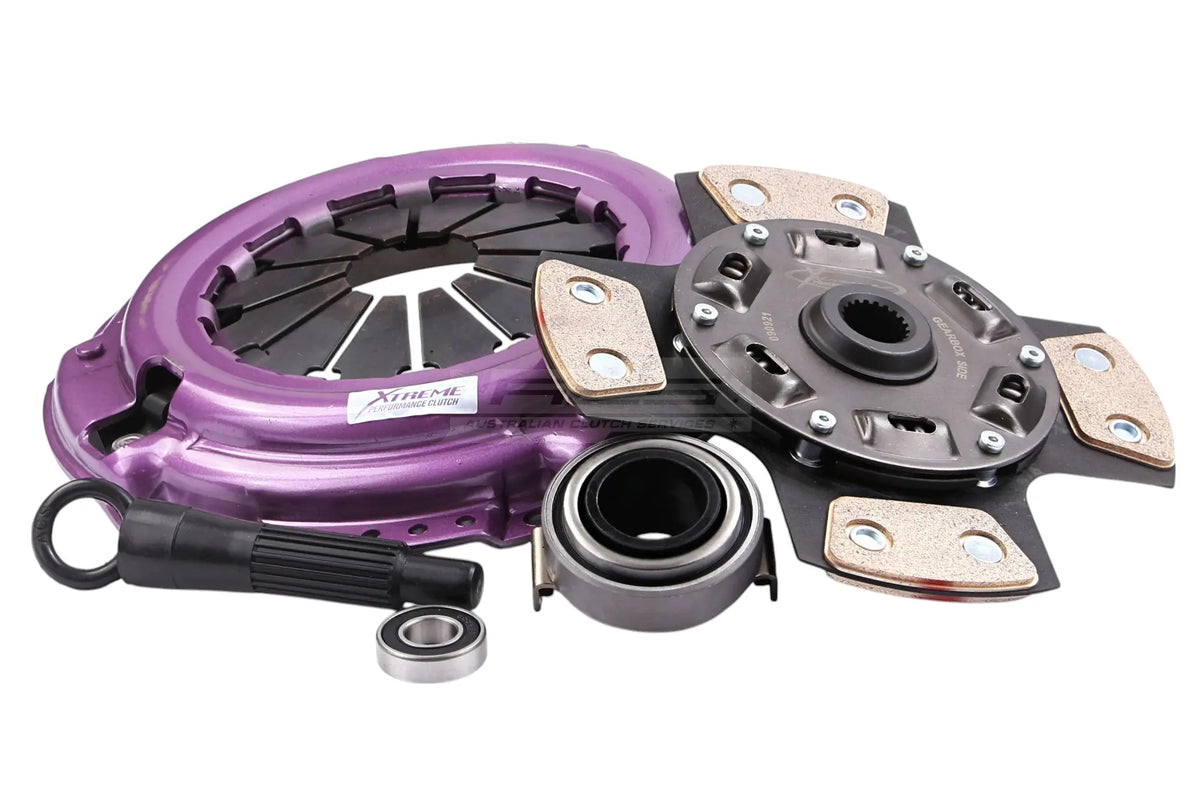

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
