Xtreme Clutch single-plate sprung ceramic clutch kit for the Honda Jazz. Designed for track applications requiring increased heat and torque capacity.
FITMENT Honda Jazz (GD1) March 2002–July 2008 — 1.3 i-DSI, L13A1 1339, 61 kW. Honda Jazz (GD3) April 2002–July 2008 — 1.5 VTEC, L15A1 1497, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN21006-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 212 mm upgrade Input spline: 20 teeth, 22 mm diameter Flywheel step: -1.5 mm Supplier-rated torque capacity: 410 Nm

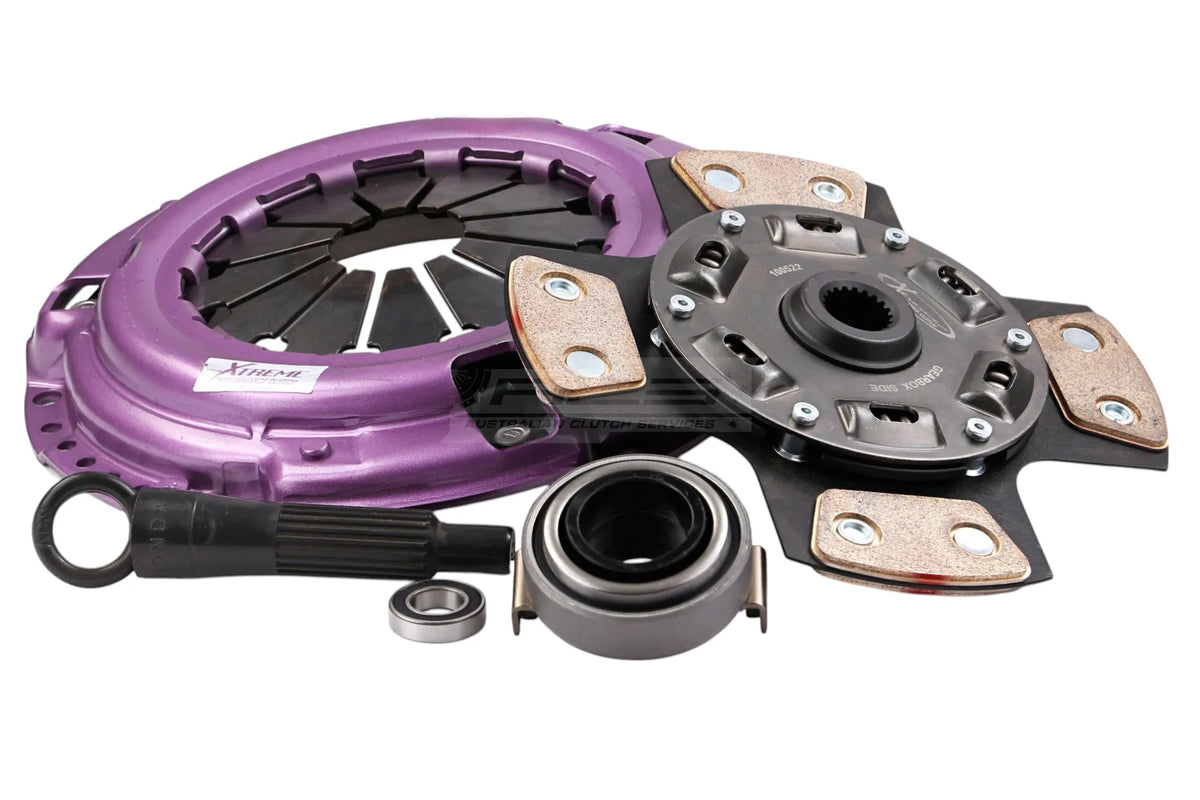

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
