Xtreme Clutch single-plate sprung organic clutch kit for the Honda Jazz. Designed for street-performance applications.
FITMENT Honda Jazz (GD1) March 2002–July 2008 — 1.3 i-DSI, L13A1 1339, 61 kW. Honda Jazz (GD3) April 2002–July 2008 — 1.5 VTEC, L15A1 1497, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN21006-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 212 mm upgrade Input spline: 20 teeth, 22 mm diameter Flywheel step: -1.5 mm Supplier-rated torque capacity: 270 Nm

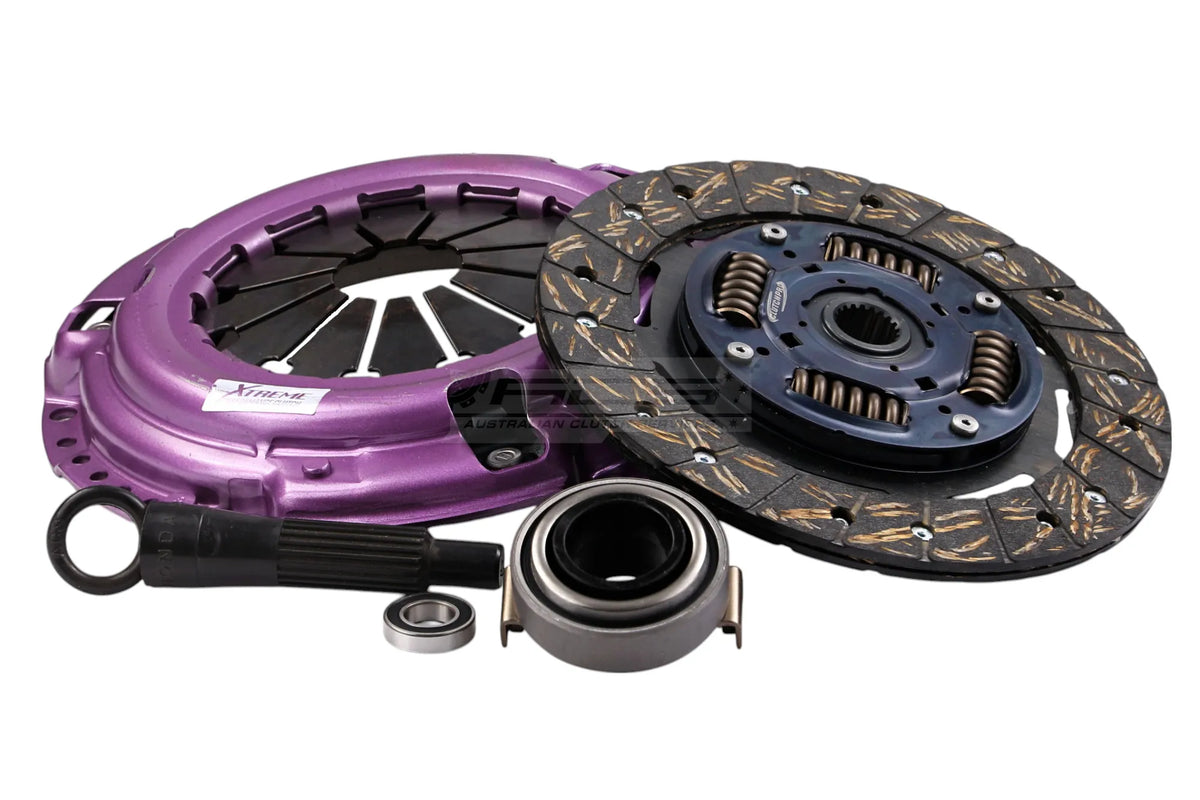

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
