Xtreme Clutch 240mm Sprung Organic Clutch Kit Hyundai i30 N 2.0 Turbo with Flywheel and CSC KHD24631-1A

Xtreme Clutch 240 mm sprung organic single-plate clutch kit for the listed Hyundai i30 N 2.0 Turbo manual applications. Includes a matching flywheel and concentric slave cylinder (CSC).

FITMENT
Hyundai i30 N 2.0 turbo, from July 2017; G4KH, 1998 cc petrol, 202 kW.
Hyundai i30 N 2.0 turbo, from March 2021; G4KH, 1998 cc petrol, 206 kW.
Manual-transmission application only. Not for DCT models.

SPECIFICATIONS
Part number: KHD24631-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Flywheel step: -9.53 mm
Recommended use: street performance

PURCHASED PARTS PACKAGE

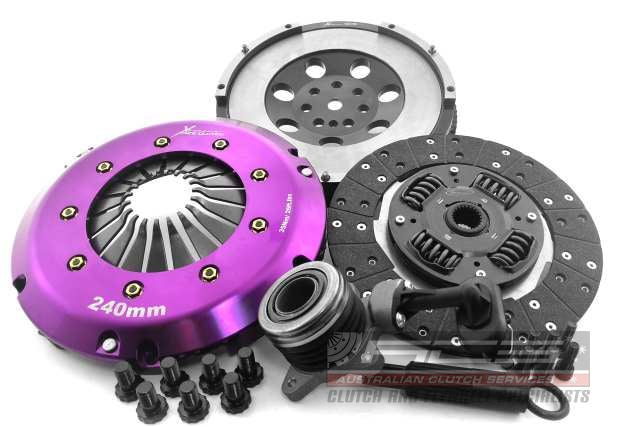

Heavy-duty pressure plate and sprung organic friction disc, matching flywheel, concentric slave cylinder (CSC), bolts, alignment tool and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components. Fit the supplied clutch, flywheel and release components as a matched assembly. Follow TSB-167: CSC mounting and handling. Also follow TSB-226: 240 mm clutch installation.
