Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Hyundai Accent 1.3 applications. Intended for performance street use.
FITMENT Hyundai Accent Gen. I / 1.3 i 12V, October 1994–January 2000; engine G4EH 1341 cc, 62 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KHD19005-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 185 mm Input spline: 20 teeth, 23 mm diameter Supplier-rated torque capacity: 190 Nm Flywheel step: flat (0 mm)

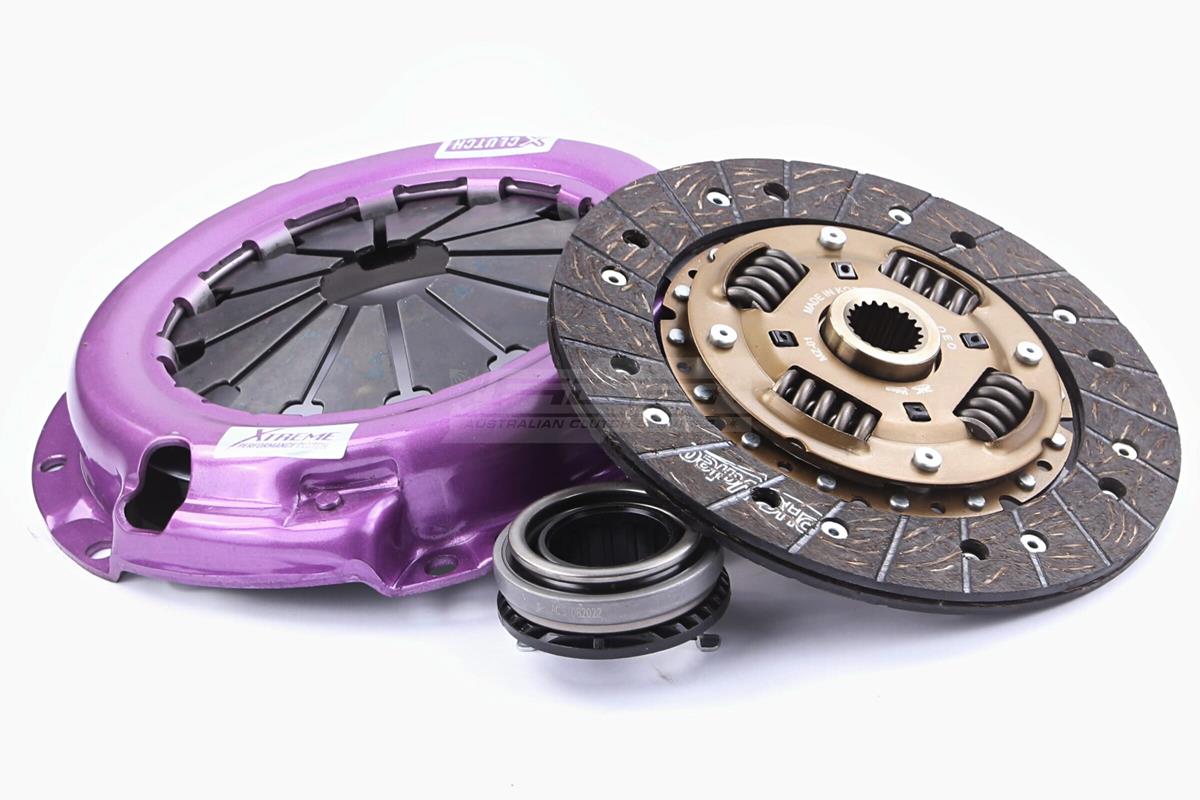

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
