Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Ford F-150 5.8 V8 applications. Intended for performance street use.
FITMENT Ford F-150 5.8 V8, October 1991–September 1996; engine 98H 5766 cc, 149 kW Ford F-150 5.8 V8 4x4, October 1991–September 1996; engine 98H 5766 cc, 149 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KFD28017-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 280 mm Input spline: 10 teeth, 27 mm diameter Supplier-rated torque capacity: 620 Nm Flywheel step: flat (0 mm) Clamp load: 1200 kg (30% increase over standard)

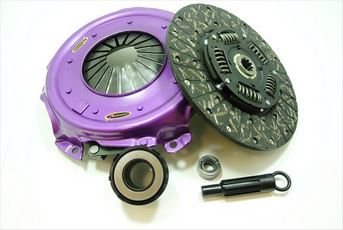

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
