Xtreme Clutch Stage 2 Sprung Ceramic Clutch Kit Ford Falcon 4.0 with Flywheel and CSC KFD26690-1B

Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Ford Falcon 4.0. Designed for motorsport applications requiring increased heat and torque capacity.

FITMENT
Ford Falcon 4.0, September 2002–September 2005
Engine: BARRA 182 3984 cc, 182 kW
Manual-transmission applications only. Match the engine, gearbox input spline, flywheel and clutch release system before ordering.

SPECIFICATIONS
Part number: KFD26690-1B
Stage: 2
Construction: single plate
Friction disc: sprung ceramic
Disc diameter: 266 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 960 Nm

PURCHASED PARTS PACKAGE

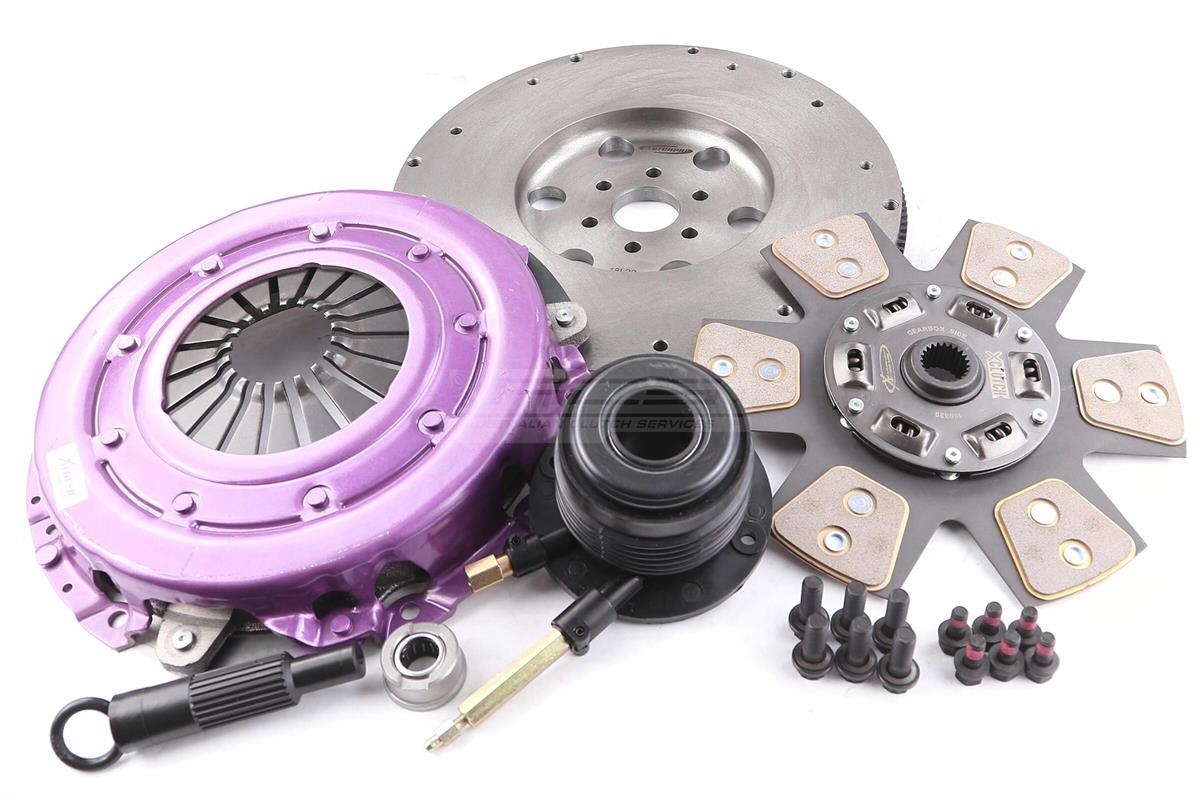

Heavy-duty pressure plate, sprung ceramic friction disc, matching flywheel and concentric slave cylinder (CSC), with the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Follow the supplied installation and bedding-in instructions. Inspect the flywheel, gearbox spline and release system before fitting. The supplier clutch torque rating does not establish a safe limit for other drivetrain components. Engagement can be more direct than with a standard sprung organic clutch.
