Xtreme Clutch 266mm Sprung Organic Clutch and Flywheel Kit Ford Falcon 4.0 KFD26690-1A

Xtreme Clutch 266 mm sprung organic single-plate clutch kit with flywheel and hydraulic release components for the listed Ford Falcon 4.0 manual application. Designed for street-performance use.

FITMENT
Ford Falcon 4.0 i, September 2002–September 2005; BARRA 182, 3984 cc petrol, 182 kW.
For the matching manual gearbox only. Match the exact engine, gearbox input spline, flywheel and hydraulic release arrangement before ordering. Not for turbocharged Falcon versions, V8 models, automatic gearboxes or other engine and gearbox combinations.

SPECIFICATIONS
Part number: KFD26690-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 266 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 630 Nm
Recommended use: street performance

PURCHASED PARTS PACKAGE

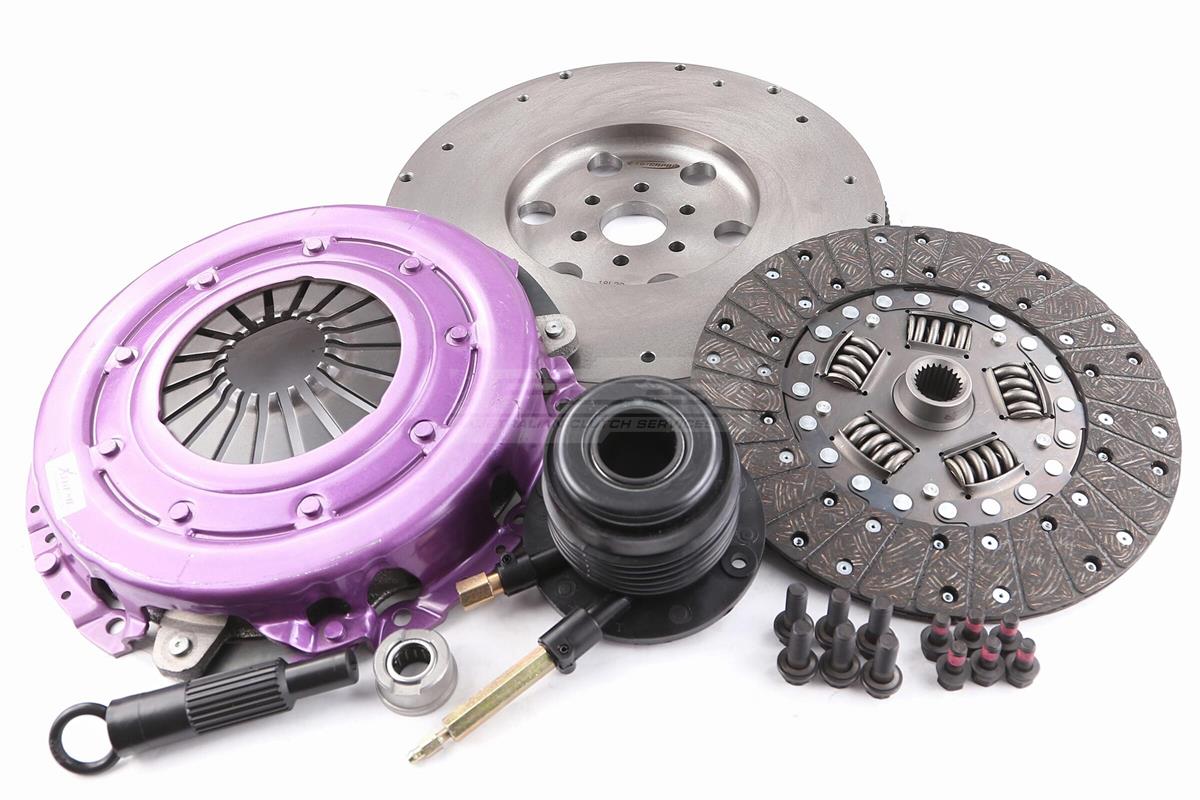

Heavy-duty pressure plate, sprung organic friction disc, flywheel, hydraulic release unit, pilot bearing, fitting fasteners and alignment tool.

INSTALLATION AND USE
Use the supplied flywheel and matching release components together. Follow the kit-specific fitting instructions and the manufacturer bedding-in guidance. Check release travel, hydraulic operation and clearance before use. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
