Xtreme Clutch Stage 2 Sprung Ceramic Clutch Kit Ford Falcon 4.0 with Flywheel KFD26590-1B

Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Ford Falcon 4.0 applications. Intended for motorsport applications requiring increased torque and heat capacity.

FITMENT
Ford Falcon 4.0 i, September 2002–September 2005; engine BARRA 182 3984 cc, 182 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KFD26590-1B
Stage: 2
Construction: single plate
Friction disc: sprung ceramic
Disc diameter: 266 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 960 Nm

PURCHASED PARTS PACKAGE

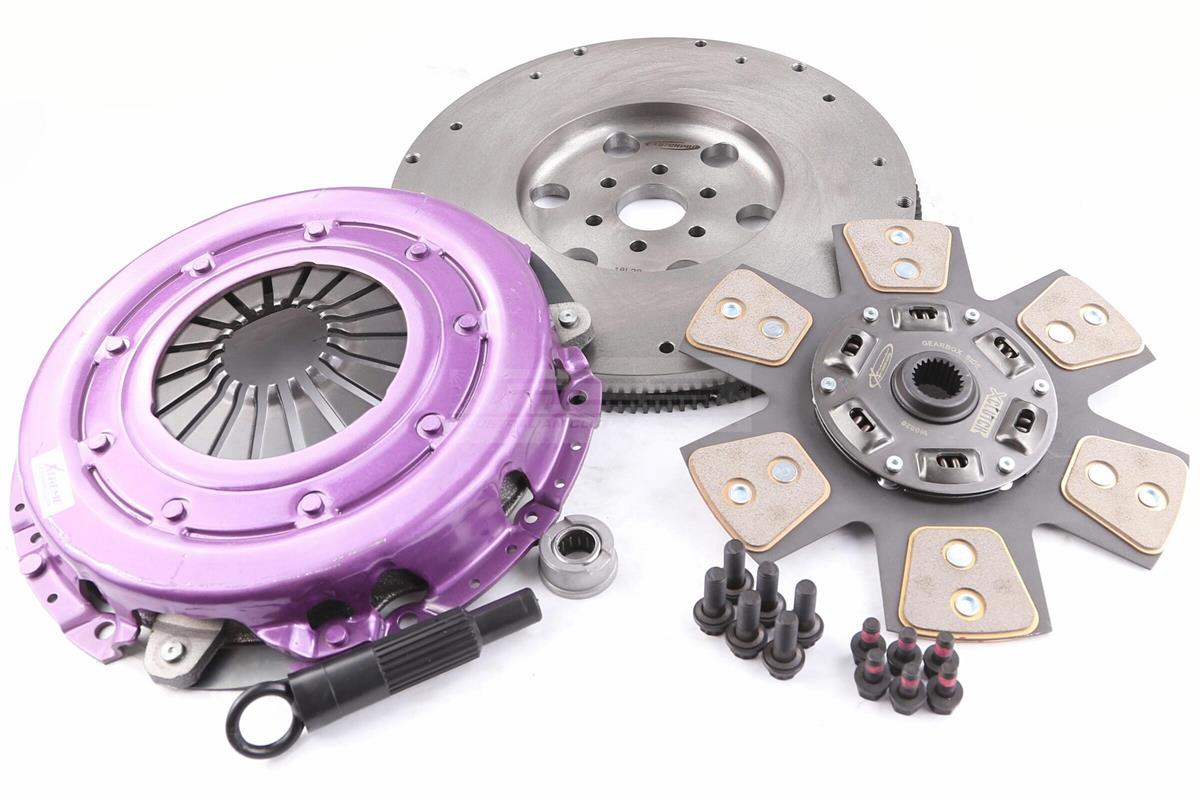

Heavy-duty pressure plate, sprung ceramic friction disc, matching flywheel and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
