Xtreme Clutch Stage 1 Sprung Organic Clutch Kit Ford Focus RS 2.0 with Flywheel and CSC KFD24660-1A

Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Ford Focus RS 2.0 applications. Intended for performance street use. Includes a single-mass conversion flywheel and concentric slave cylinder.

FITMENT
Ford Focus 2.0 RS, October 2002–November 2004; engine HMDA 1988 cc, 158 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KFD24660-1A
Stage: 1
Construction: single plate
Friction disc: sprung organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 420 Nm
Flywheel step: -6.7 mm
Clamp load: 900 kg
Included flywheel: single-mass conversion

PURCHASED PARTS PACKAGE

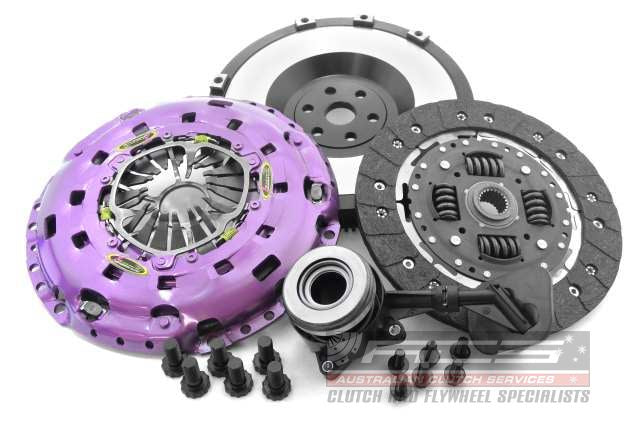

Heavy-duty pressure plate, sprung organic friction disc, matching flywheel, concentric slave cylinder (CSC) and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components. Single-mass conversion can increase transmitted engine harmonics or gearbox rattle. The friction disc must be installed in the orientation specified by the manufacturer. Follow TSB-174: friction disc orientation and TSB-167: CSC handling and bleeding.
