Xtreme Clutch 240mm Sprung Organic Clutch Kit Volvo C70 / S60 with Flywheel and CSC KFD24638-1A

Xtreme Clutch 240 mm sprung organic single plate clutch kit with matching flywheel and concentric slave cylinder (CSC) for the listed Volvo C70 / S60 manual applications.

FITMENT
Volvo C70 2.3 T5, March 1998–October 2005; B 5234 T3, 2319 cc turbo petrol, 176 kW.
Volvo C70 2.3 T-5, March 1997–September 2002; B 5234 T3, 2319 cc turbo petrol, 176 kW.
Volvo S60 2.4 T, July 2000–April 2010; B 5244 T3, 2435 cc turbo petrol, 147 kW.
Volvo S60 2.4 T AWD, June 2001–April 2010; B 5244 T3, 2435 cc turbo petrol, 147 kW.
Listed manual gearbox applications only. Supplied as a conversion from the matching original dual-mass flywheel to the kit single-mass flywheel. Match the engine, gearbox input spline and release system; not for other Volvo engine/gearbox combinations, automatic transmissions or unrelated conversions.

SPECIFICATIONS
Part number: KFD24638-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Recommended use: street performance

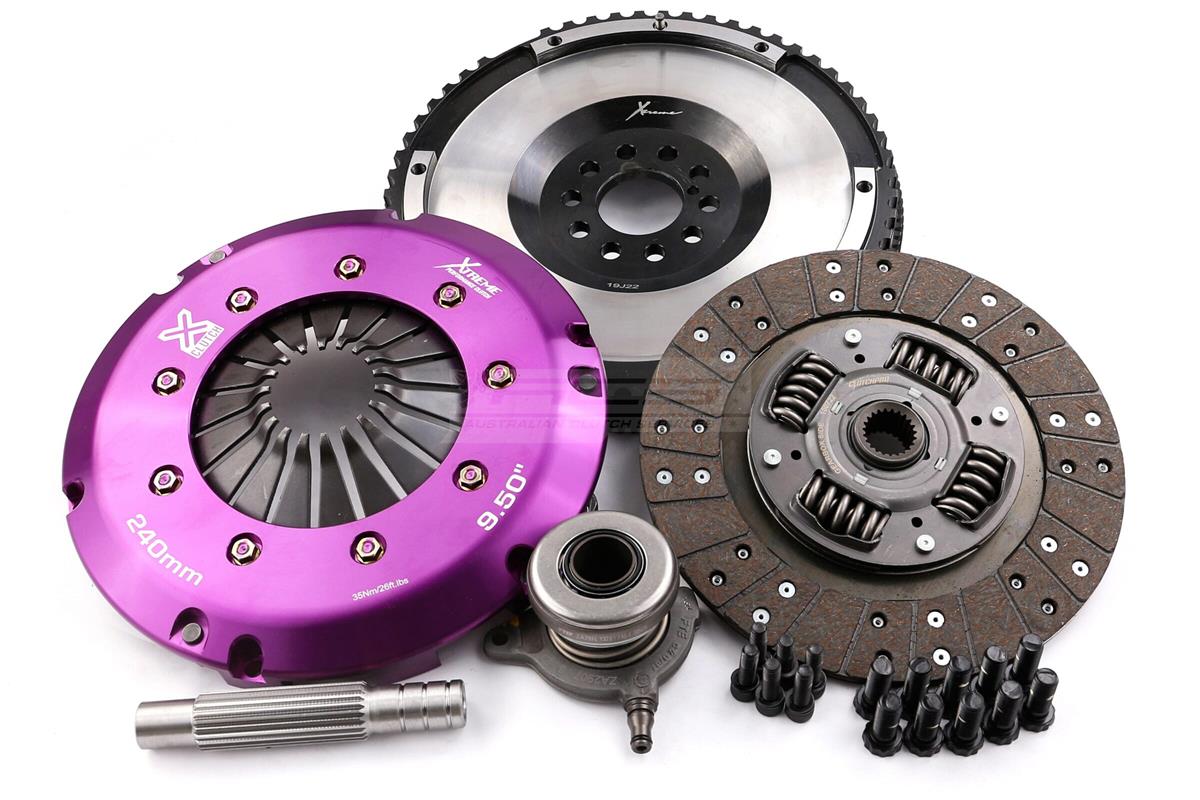

PURCHASED PARTS PACKAGE
Heavy-duty pressure plate, sprung organic friction disc, matching single-mass flywheel, concentric slave cylinder (CSC), fitting bolts and alignment tool, as shown in the original supplier photograph.

INSTALLATION AND USE
Match the engine and manual gearbox configuration before fitting. Follow the supplied kit-specific installation and bedding-in instructions. Organic friction material is intended for progressive road engagement. A single-mass flywheel conversion can change gearbox noise and vibration. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
