Xtreme Clutch Stage 1 Organic Clutch Kit Ford Focus RS 2.0 with Flywheel and CSC KFD24634-1A

Xtreme Clutch Stage 1 organic clutch kit for the listed Ford Focus RS 2.0. Designed for performance street applications.

FITMENT
Ford Focus RS 2.0, October 2002–November 2004
Engine: HMDA 1988 cc, 158 kW
Manual-transmission applications only. Match the engine, gearbox input spline, flywheel and clutch release system before ordering.

SPECIFICATIONS
Part number: KFD24634-1A
Stage: 1
Construction: single plate
Friction disc: organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Flywheel step: -9.53 mm

PURCHASED PARTS PACKAGE

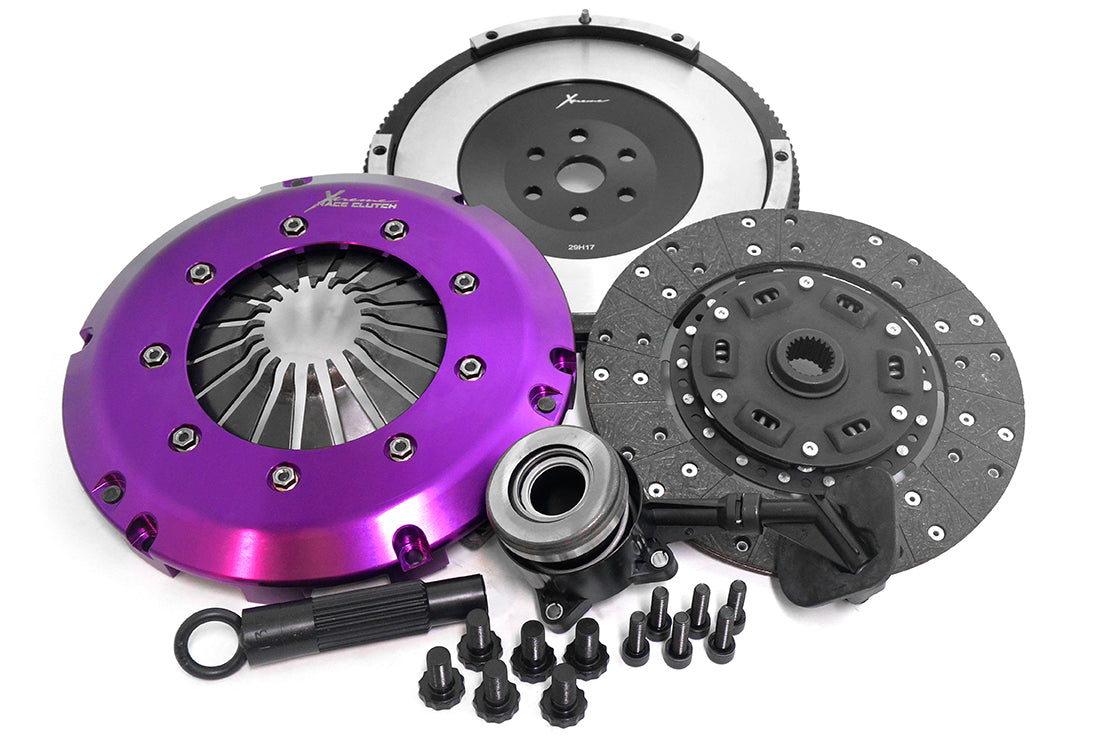

Heavy-duty pressure plate, organic friction disc, matching flywheel and concentric slave cylinder (CSC), with the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Follow the supplied installation and bedding-in instructions. Inspect the flywheel, gearbox spline and release system before fitting. The supplier clutch torque rating does not establish a safe limit for other drivetrain components.
