Xtreme Clutch 230mm Twin Rigid Organic Clutch Kit with Flywheel and CSC Ford Mustang 2.3 EcoBoost KFD23697-2G

Xtreme Clutch 230 mm twin-plate rigid organic clutch upgrade for the listed Ford Mustang 2.3 EcoBoost manual applications.

FITMENT
Ford Mustang S550 2.3 EcoBoost, December 2014–June 2018; C23HD0D, 2261 cc petrol, 233 kW.
Ford Mustang 2.3 EcoBoost, June 2018–July 2019; C23HD0D, 2261 cc petrol, 224 kW.
Ford Mustang 2.3 EcoBoost, August 2019–November 2023; C23HD0D, 2261 cc petrol, 236 kW.
For manual gearboxes only. Match the engine, gearbox input spline, flywheel and hydraulic release setup. Not for Mustang GT V8, Shelby or automatic applications.

SPECIFICATIONS
Part number: KFD23697-2G
Construction: twin plate
Friction discs: rigid organic
Disc diameter: 230 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 1200 Nm
Supplier-rated clamp load: 1300 kg
Flywheel step: +3.8 mm
Recommended use: high-power street applications

PURCHASED PARTS PACKAGE

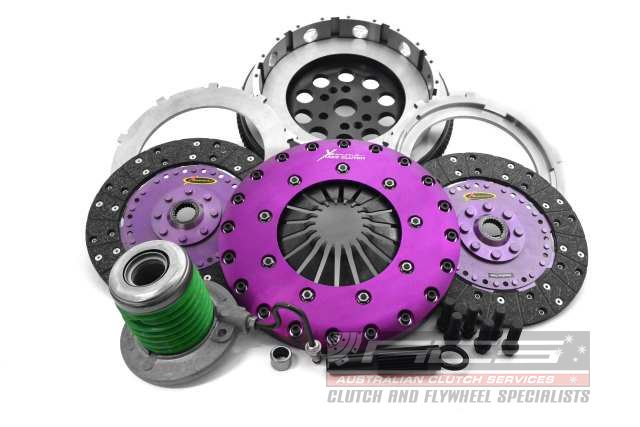

Twin organic friction discs, pressure-plate and intermediate-plate assembly, matching flywheel, concentric slave cylinder (CSC), bolts and alignment tool.

INSTALLATION AND USE
Follow the supplied fitting instructions and manufacturer bedding-in guidance. Check the CSC installation, release travel and hydraulic connections against the exact gearbox before fitting. A twin-plate clutch can produce additional mechanical noise; a single-mass flywheel can transmit more gearbox noise and vibration. The clutch torque rating does not establish a safe limit for other drivetrain components.
