Xtreme Clutch single-plate sprung organic clutch kit for the Mazda Premacy. Designed for street-performance applications.
FITMENT Mazda Premacy (CP10S) November 2001–March 2005 — 2.0, FS7E, FS7G 1991, 96 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KFD23009-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 225 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: -7.5 mm (0.295 inch) Supplier-rated torque capacity: 300 Nm Clamp load: 700 kg (40% inc.)

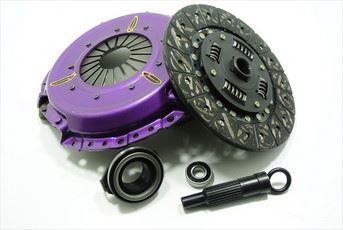

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
