Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Ford Escort 2.0 applications. Intended for motorsport applications requiring increased torque and heat capacity.
FITMENT Ford Escort 2.0, August 1975–August 1980; engine NE 1993 cc, 80 kW Ford Escort 2.0, August 1975–August 1980; engine TL20G 1993 cc, 80 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KFD22001-1B Stage: 2 Construction: single plate Friction disc: sprung ceramic Disc diameter: 215 mm Input spline: 23 teeth, 26.2 mm diameter Supplier-rated torque capacity: 410 Nm Flywheel step: flat (0 mm) Clamp load: 650 kg (40% increase over standard)

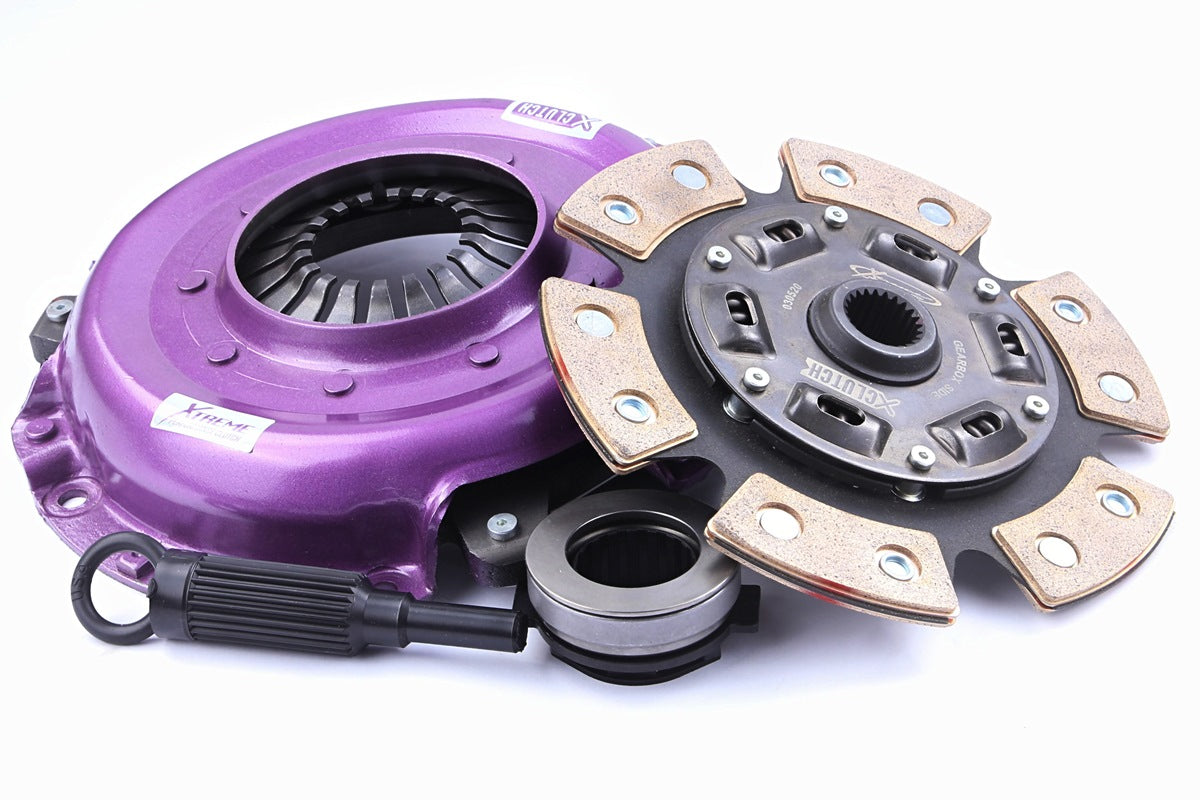

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
