Xtreme Clutch single-plate sprung organic clutch kit for the Mazda 323. Designed for street-performance applications.
FITMENT Mazda 323 (BG) April 1987–August 1993 — 1.6, B6 (SOHC) 1597, 77 kW. Mazda 323 (BG6S) June 1989–March 1991 — 1.6, B61V 1597, 64 kW. Mazda 323 (BG6S / BG6P) April 1991–April 1994 — 1.6, B67L, B67J, B67K 1597, 66 kW. Mazda 323 (BG6S / BG6P) September 1989–June 1991 — 1.6, B6E 1597, 62 kW. Mazda 323 (BG6Z) September 1989–June 1991 — 1.6, B6E 1597, 62 kW. Mazda 323 (BG6S) August 1989–October 1996 — 1.6 16V, B6 1597, 65 kW. Mazda 323 (BG6S / BG6P) March 1991–October 1994 — 1.6 16V, B6 1597, 65 kW. Mazda 323 (BG6Z) March 1991–October 1994 — 1.6 16V, B6 1597, 65 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KFD19019-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 190 mm Input spline: 20 teeth, 22.8 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 200 Nm Clamp load: 530 kg (30% inc.)

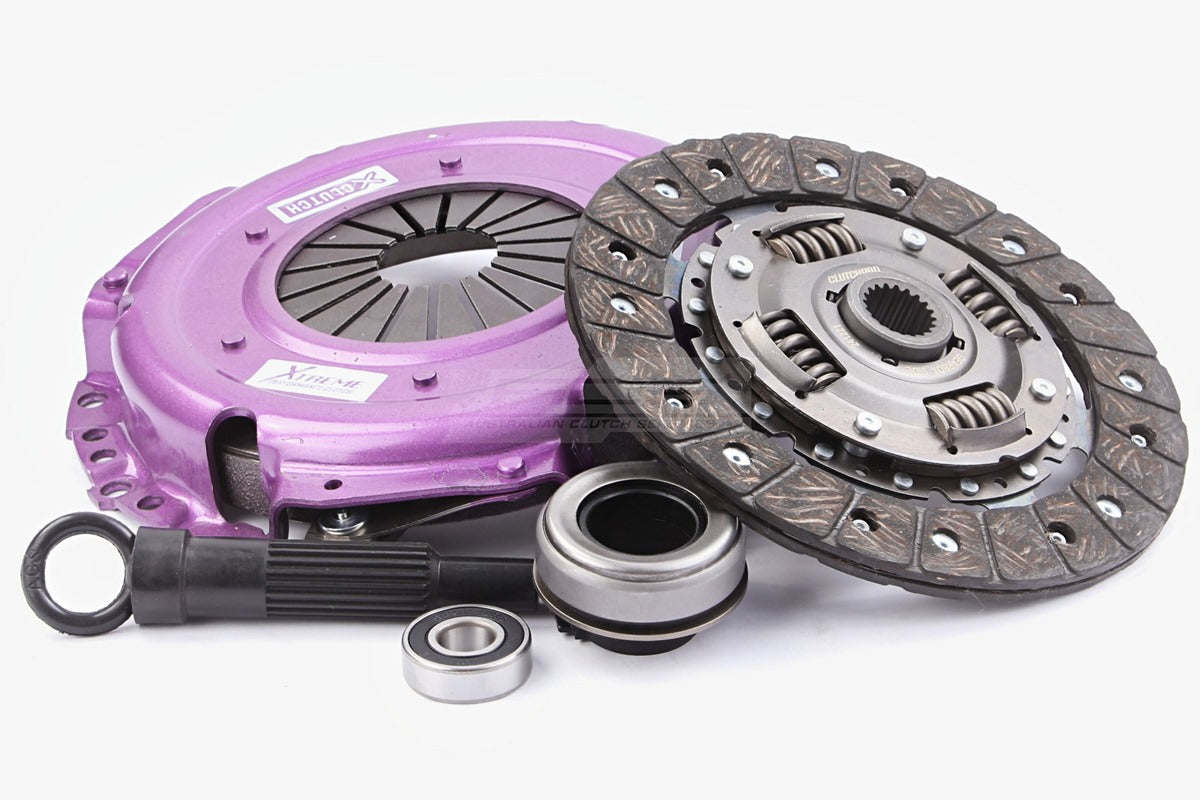

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
