Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Ford Escort 1.1 / 1.3 applications. Intended for performance street use.
FITMENT Ford Escort 1.1, January 1968–December 1974; engine G1 1098 cc, 32 kW Ford Escort 1.3, June 1970–February 1976; engine J2 1298 cc, 42 kW Ford Escort 1.3, June 1970–February 1976; engine KL13 1298 cc, 42 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KFD19011-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 190 mm Input spline: 20 teeth, 22.2 mm diameter Supplier-rated torque capacity: 210 Nm Flywheel step: flat (0 mm) Clamp load: 550 kg (40% increase over standard)

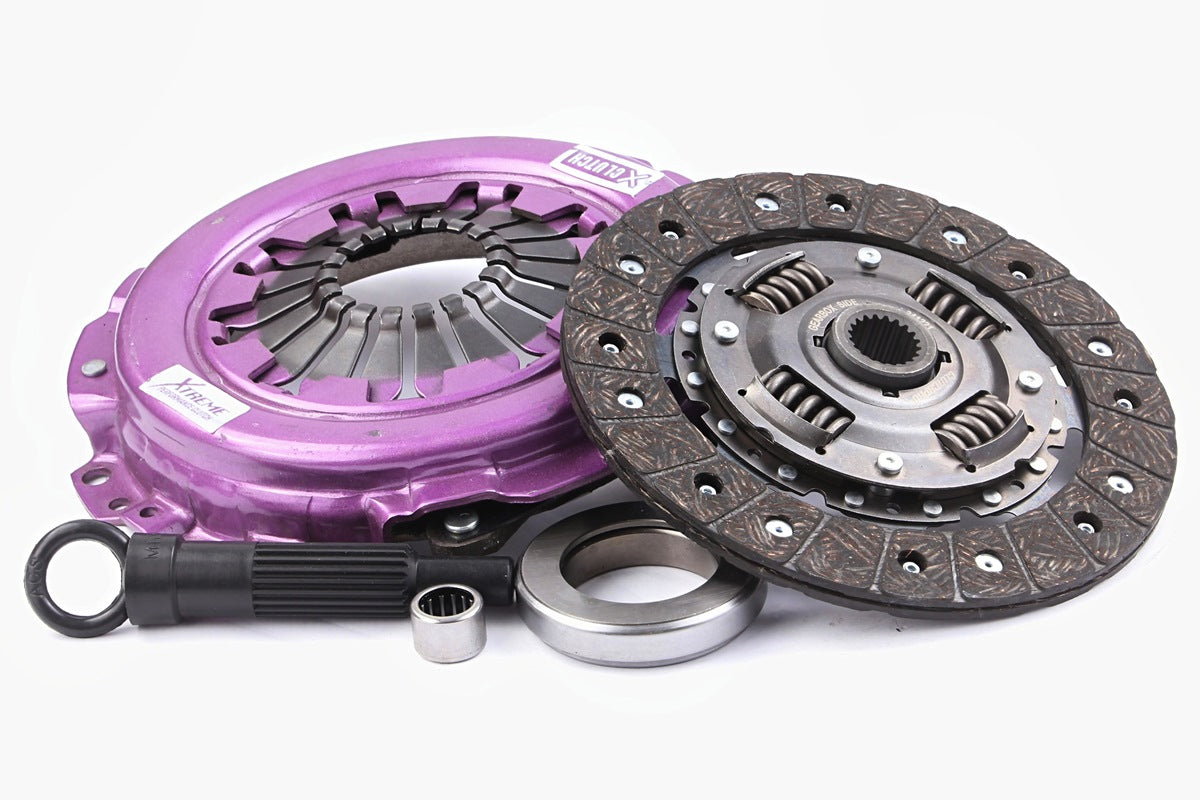

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
