Xtreme Clutch 190mm Sprung Organic Clutch Kit Ford Escort / Sierra / Puma KFD19006-1A

Xtreme Clutch 190 mm heavy-duty sprung organic single-plate clutch kit for the listed Ford Escort, Sierra and Puma manual applications.

FITMENT
Ford Escort 1.3, June 1970–February 1976; J2, 1298 cc petrol, 42 kW.
Ford Escort 1.3, June 1970–February 1976; KL13, 1298 cc petrol, 42 kW.
Ford Puma Racing ST 160, June 1999–June 2002; MHA, 1679 cc petrol, 114 kW.
Ford Sierra 1.6, August 1982–December 1986; LCS / LCT / LSD, 1593 cc petrol, 55 kW.
Listed manual-transmission applications with the matching 20-tooth, 22.2 mm input spline only. Match the existing clutch diameter, flywheel and release system before ordering. These entries do not establish fitment to every Escort, Sierra or Puma, other engines, automatic transmissions or gearbox conversions.

SPECIFICATIONS
Part number: KFD19006-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 190 mm
Input spline: 20 teeth, 22.2 mm diameter
Flywheel step: flat (0 mm)
Supplier-rated torque capacity: 210 Nm
Supplier-specified clamp load: 550 kg (40% increase)
Recommended use: street performance

PURCHASED PARTS PACKAGE

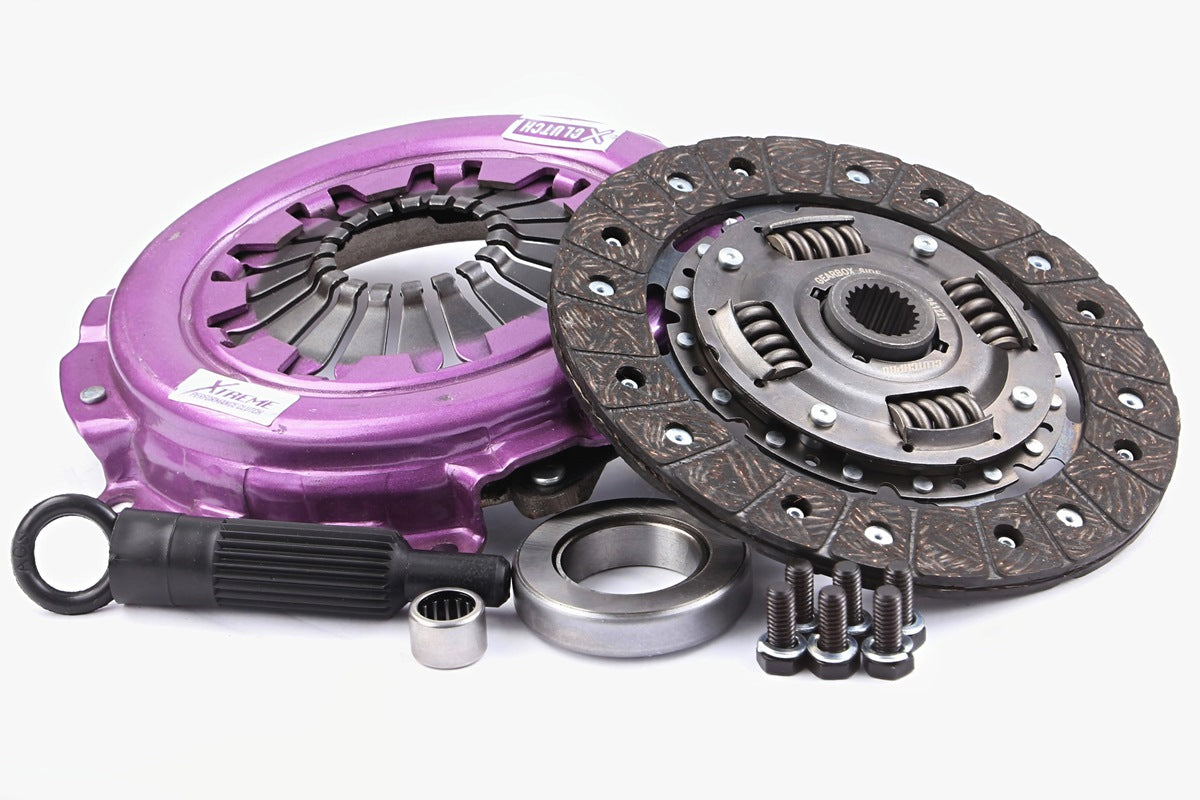

Heavy-duty pressure plate, sprung organic friction disc, release bearing, pilot bearing and alignment tool, plus the fitting bolts shown, as shown in the original supplier photograph. Flywheel and concentric slave cylinder (CSC) are not included.

INSTALLATION AND USE
Follow the supplied kit-specific installation and bedding-in instructions. Organic friction material is intended for progressive road engagement. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
