Xtreme Clutch Stage 1 Sprung Organic Clutch Kit Toyota Coaster 3.2 D (BB11) KDA26001-1A

Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Toyota Coaster 3.2 D (BB11) applications. Intended for performance street use.

FITMENT
Toyota Coaster 3.2 D (BB11), August 1977–April 1982; engine 2B 3197 cc, 56 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KDA26001-1A
Stage: 1
Construction: single plate
Friction disc: sprung organic
Disc diameter: 255 mm
Input spline: 21 teeth, 29.8 mm diameter
Supplier-rated torque capacity: 380 Nm

PURCHASED PARTS PACKAGE

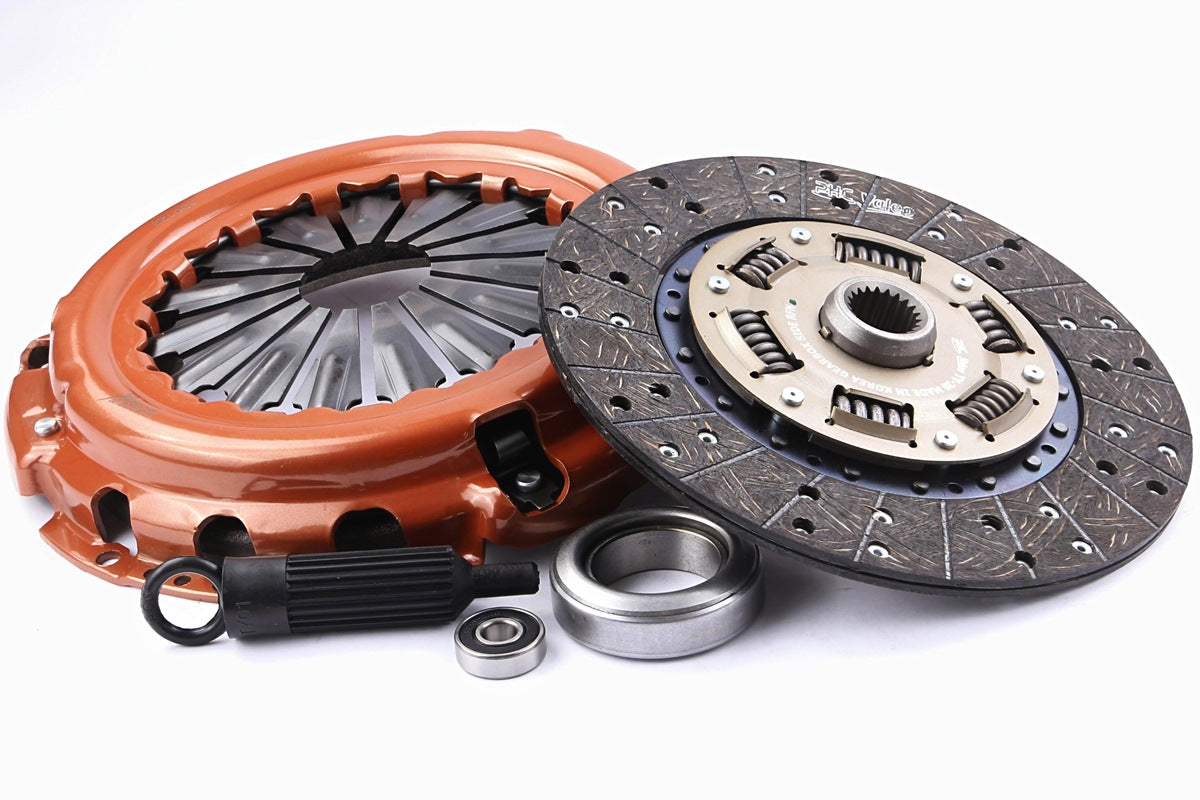

Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
