Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Alfa Romeo 156 Sportwagon 2.4 JTD. Intended for performance street applications while retaining the engagement characteristics of an organic friction disc.
FITMENT Alfa Romeo 156 Sportwagon 2.4 JTD, March 2002–May 2006 Engine: 841 C000 2387 cc, 110 kW Manual-transmission applications only. Match the engine code, gearbox input spline, flywheel and release system before ordering.
SPECIFICATIONS Part number: KCY24001-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 235 mm Input spline: 23 teeth, 25.4 mm diameter Supplier-rated torque capacity: 390 Nm Flywheel step: 0 mm

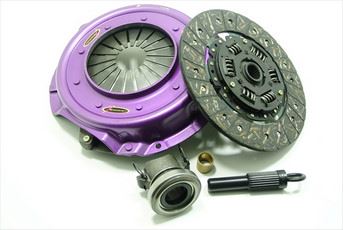

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Inspect the flywheel, gearbox spline and release system before fitting. Follow the supplied installation and bedding-in instructions. The supplier torque rating applies to the clutch and does not establish a safe limit for the gearbox or other drivetrain components.
