Xtreme Clutch 300mm Sprung Organic Clutch Kit Chevrolet Corvette C5 LS1 with Flywheel and CSC KCR30601-1A

Xtreme Clutch 300 mm sprung organic single plate clutch kit with matching flywheel and concentric slave cylinder (CSC) for the listed Chevrolet Corvette C5 LS1 manual applications.

FITMENT
Chevrolet Corvette C5 5.7, January 1997–September 2004; LS1, 5665 cc petrol, 253 kW.
Chevrolet Corvette C5 5.7, September 1998–December 2004; LS1, 5665 cc petrol, 257 kW.
Chevrolet Corvette C5 5.7, September 2000–December 2004; LS1, 5665 cc petrol, 261 kW.
Listed LS1 manual-transmission applications only. Match the engine, gearbox input spline, flywheel and concentric release system. Not for LS6 Z06, C4/C6, automatic transmissions, other engines or gearbox conversions.

SPECIFICATIONS
Part number: KCR30601-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 300 mm
Input spline: 26 teeth, 28.6 mm diameter
Flywheel step: flat (0 mm)
Recommended use: street performance

PURCHASED PARTS PACKAGE

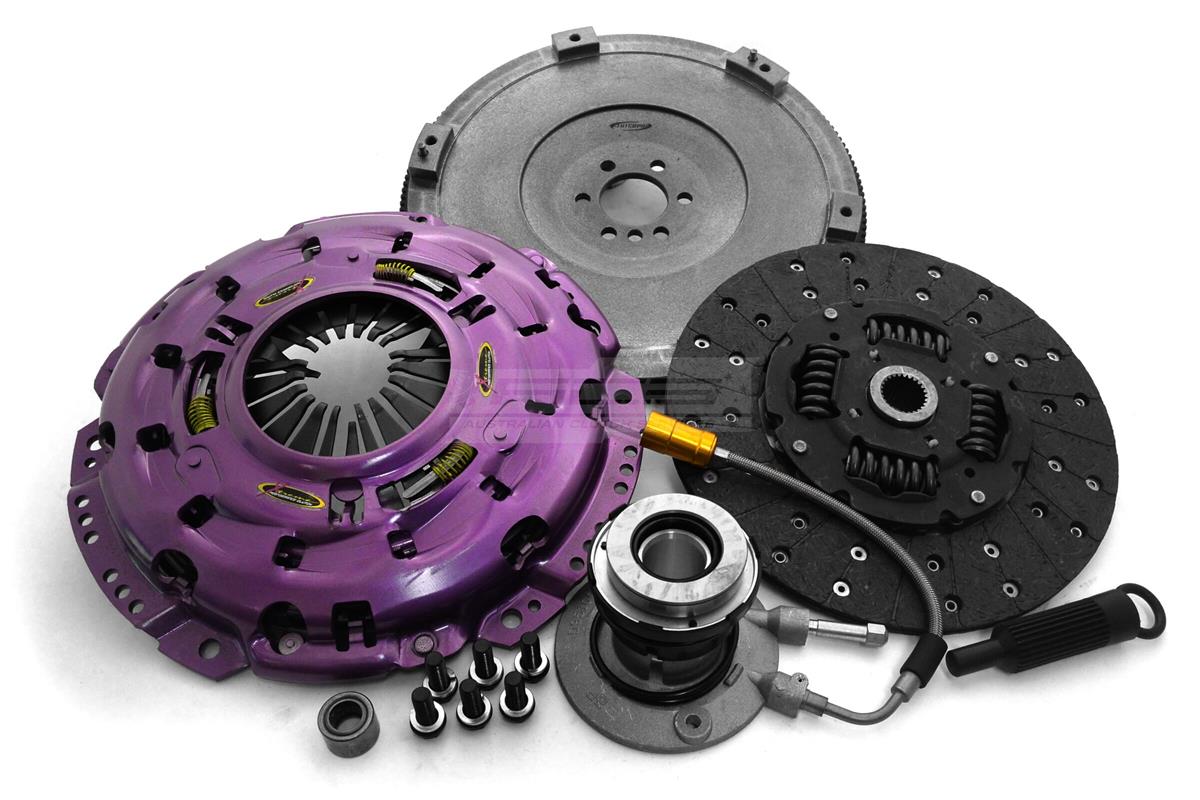

Heavy-duty pressure plate, sprung organic friction disc, matching single-mass flywheel, concentric slave cylinder (CSC), fitting bolts and alignment tool, as shown in the original supplier photograph.

INSTALLATION AND USE
Match the engine and manual gearbox configuration before fitting. Follow the supplied kit-specific installation and bedding-in instructions. Organic friction material is intended for progressive road engagement.
