Xtreme Clutch 230mm Rigid Ceramic Twin Plate Clutch Kit BMW M3 E90 / E92 / E93 with Flywheel KBM23599-2E

Xtreme Clutch 230 mm rigid ceramic twin-plate clutch kit for the listed BMW M3 manual applications. Includes a matching single-mass flywheel.

FITMENT
BMW M3 E90, December 2007–October 2011; S65 B40 A, 3999 cc, 309 kW.
BMW M3 E92, June 2007–June 2013; S65 B40 A, 3999 cc, 309 kW.
BMW M3 E93, March 2008–October 2013; S65 B40 A, 3999 cc, 309 kW.
Manual transmission only. Not for DCT models.

SPECIFICATIONS
Part number: KBM23599-2E
Construction: twin plate
Friction discs: rigid ceramic
Disc diameter: 230 mm
Input spline: 26 teeth, 35 mm diameter
Recommended use: motorsport
Flywheel step: +3.8 mm
Flywheel: single-mass conversion

PURCHASED PARTS PACKAGE

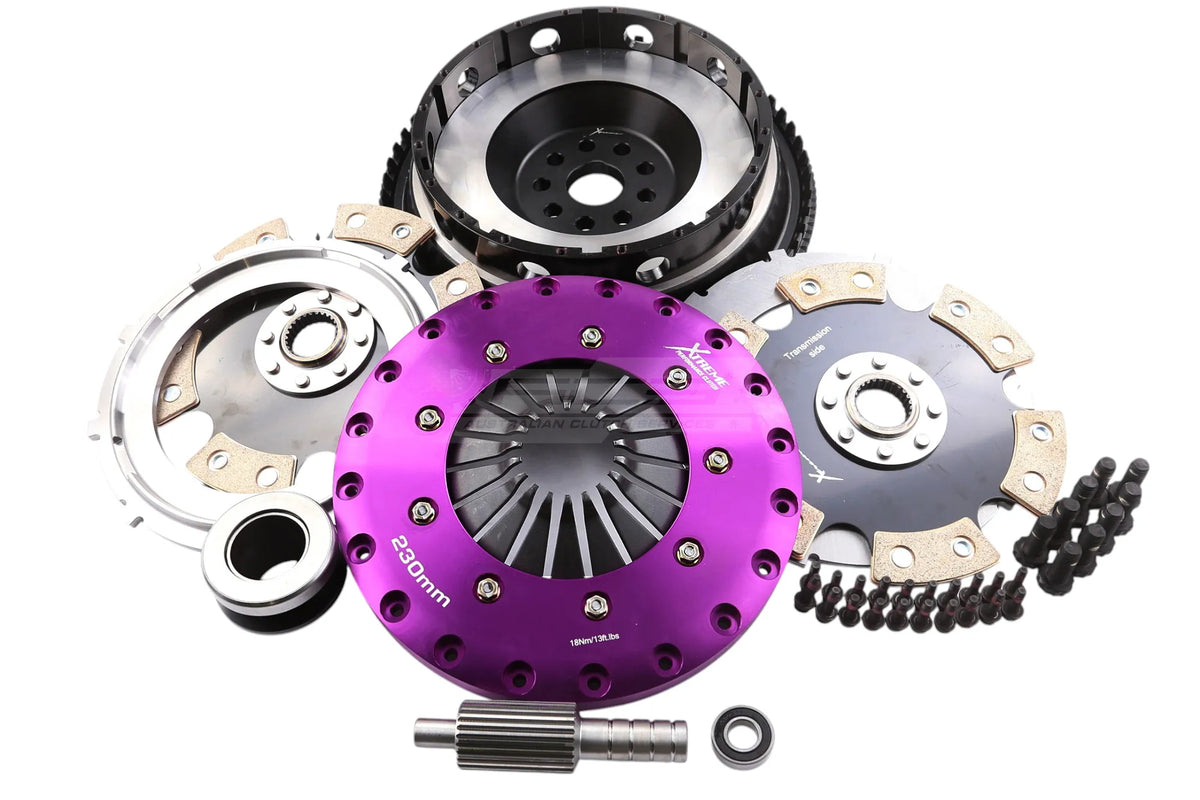

Twin-plate clutch assembly with two rigid ceramic friction discs, intermediate plate and clutch cover, matching single-mass flywheel, release bearing, pilot bearing, bolts and alignment tool.

INSTALLATION AND USE
Match the chassis, engine code, gearbox input spline, flywheel and release system before ordering. Fit the supplied components as a matched assembly and follow the supplied installation and bedding-in instructions. Inspect the clutch fork and pivot ball for wear and follow TSB-269 and TSB-166: 230 mm twin-plate installation. The floating intermediate plate can rattle when the clutch is disengaged. A single-mass flywheel can increase gearbox rollover noise and transmitted engine harmonics. Ceramic friction material can engage more abruptly than an original road clutch. The supplier torque rating does not establish a safe limit for other drivetrain components.
