Xtreme Clutch 230 mm Organic Twin-Plate Clutch Kit with Flywheel BMW M5 (E39) KBM23546-2G
2 228 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
Xtreme Clutch 230 mm organic twin-plate clutch kit for the listed BMW M5 (E39). Supplied with a matching single-mass flywheel for high-power street applications. Rigid organic discs give a more direct engagement than a standard single-plate clutch.
FITMENT BMW M5 (E39), October 1998–June 2003 Engine: S62 B50 (508S1) 4941 cc, 294 kW For the listed manual-transmission application. Confirm gearbox type, input spline, crankshaft mounting and release arrangement before ordering.
SPECIFICATIONS Part number: KBM23546-2G Construction: 230 mm twin plate Friction material: organic Input spline: 10 teeth, 35 mm diameter Supplier-rated torque capacity: 1200 Nm Included flywheel: single mass Flywheel step: +3.8 mm Disc hub: rigid Supplier stage: 4

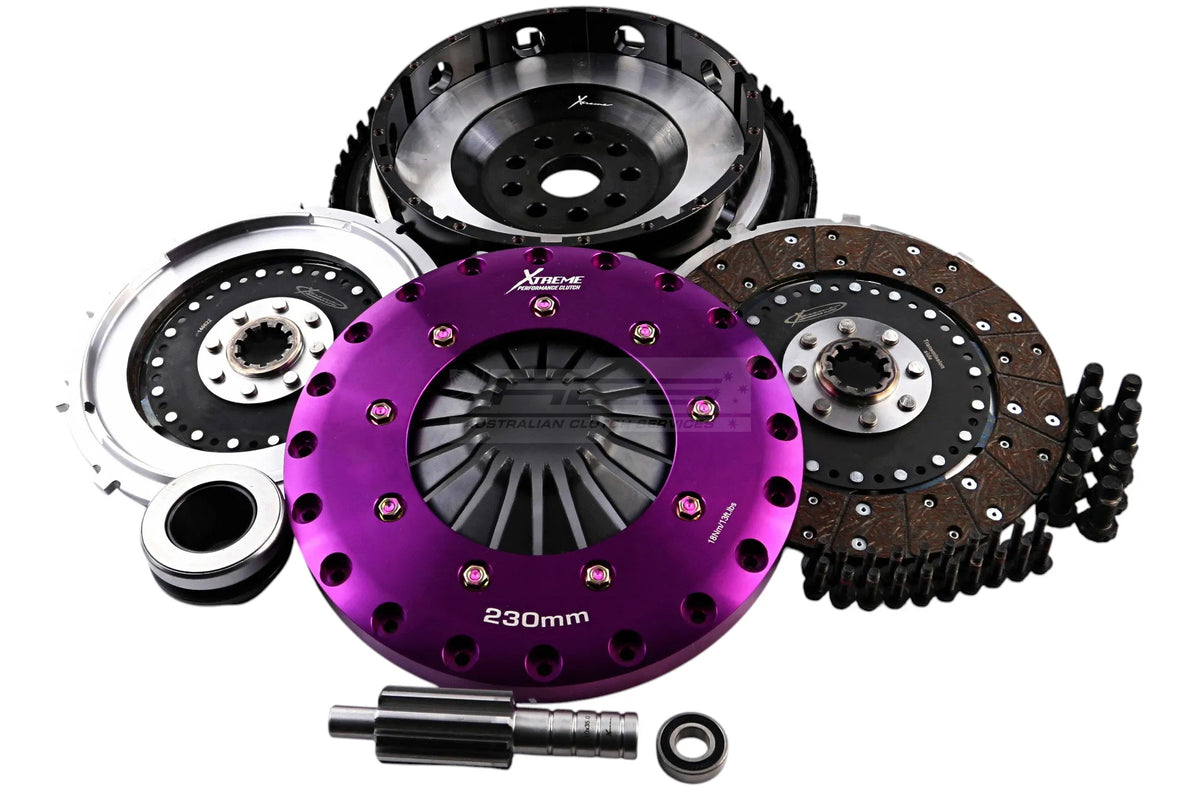

PURCHASED PARTS PACKAGE Single-mass flywheel, two organic friction discs, intermediate plate, main pressure-plate casting, clutch cover, release bearing, spigot bearing, bolts and alignment tool.
INSTALLATION AND USE Follow the fitting and bedding-in instructions for the exact kit. Check installed clutch height and release clearance before use. The clutch torque rating does not establish a safe limit for other drivetrain components. Inspect the clutch fork and pivot ball for wear before fitting. The floating intermediate plate can rattle when the clutch pedal is pressed; this is an expected characteristic of this design. Follow TSB-166 for assembly sequence, disc orientation and installed-height checks.
