Xtreme Clutch Stage 2R Sprung Ceramic Clutch Kit Audi TT RS 2.5 Quattro (8J) with Flywheel and CSC KAU24652-1R
2 142 €
1 847 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
Xtreme Clutch Stage 2R sprung ceramic clutch kit for the listed Audi TT RS 2.5 Quattro (8J). Designed for motorsport applications requiring increased heat and torque capacity. Includes a single-mass flywheel conversion and concentric slave cylinder.
FITMENT Audi TT RS 2.5 Quattro (8J), July 2009–June 2014 Engine: CEPA 2480 cc, 250 kW Manual-transmission applications only. Match the engine, gearbox input spline, flywheel and clutch release system before ordering.
SPECIFICATIONS Part number: KAU24652-1R Stage: 2R Construction: single plate Friction disc: sprung ceramic Disc diameter: 240 mm Input spline: 26 teeth, 28.6 mm diameter Supplier-rated torque capacity: 910 Nm Flywheel step: -9.53 mm Flywheel conversion: dual mass to single mass

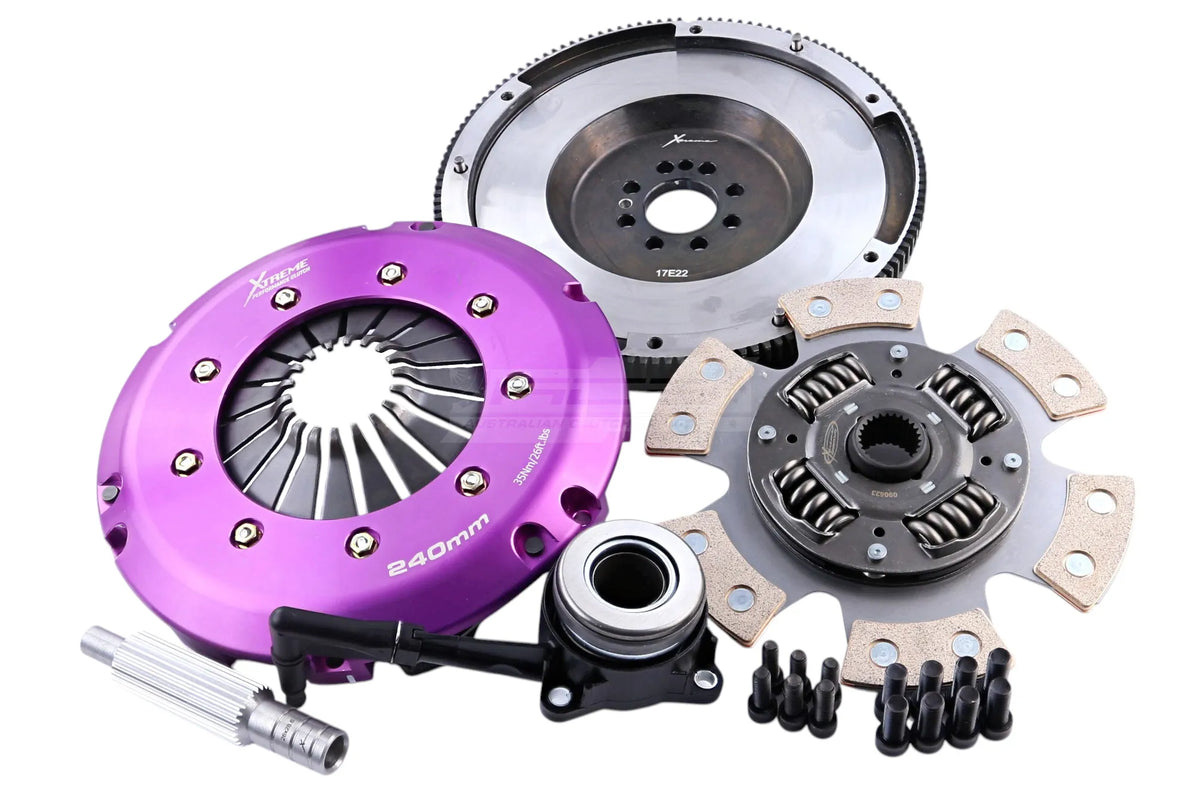

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung ceramic friction disc, matching flywheel and concentric slave cylinder (CSC), with the fitting components shown in the supplier photograph.
INSTALLATION AND USE Follow TSB-226 for disc orientation, assembly sequence and installed-clutch checks. Follow the supplied bedding-in instructions. Inspect the flywheel, gearbox spline and release system before fitting. Handle and bleed the concentric slave cylinder according to TSB-167; avoid over-pressurising or over-stroking it. The supplier clutch torque rating does not establish a safe limit for other drivetrain components. Replacing the dual-mass flywheel can increase gearbox noise at idle or under low-speed load. Engagement can be more direct than with a standard sprung organic clutch.
