Xtreme Clutch Stage 1 Organic Clutch Kit Audi TT RS 2.5 Quattro (8J) with Flywheel and CSC KAU24652-1A
1 878 €
1 619 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
Xtreme Clutch Stage 1 organic clutch kit for the listed Audi TT RS 2.5 Quattro (8J). Designed for performance street applications. Includes a single-mass flywheel conversion and concentric slave cylinder.
FITMENT Audi TT RS 2.5 Quattro (8J), July 2009–June 2014 Engine: CEPA 2480 cc, 250 kW Manual-transmission applications only. Match the engine, gearbox input spline, flywheel and clutch release system before ordering.
SPECIFICATIONS Part number: KAU24652-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 240 mm Input spline: 26 teeth, 28.6 mm diameter Supplier-rated torque capacity: 600 Nm Flywheel step: -9.53 mm Flywheel conversion: dual mass to single mass

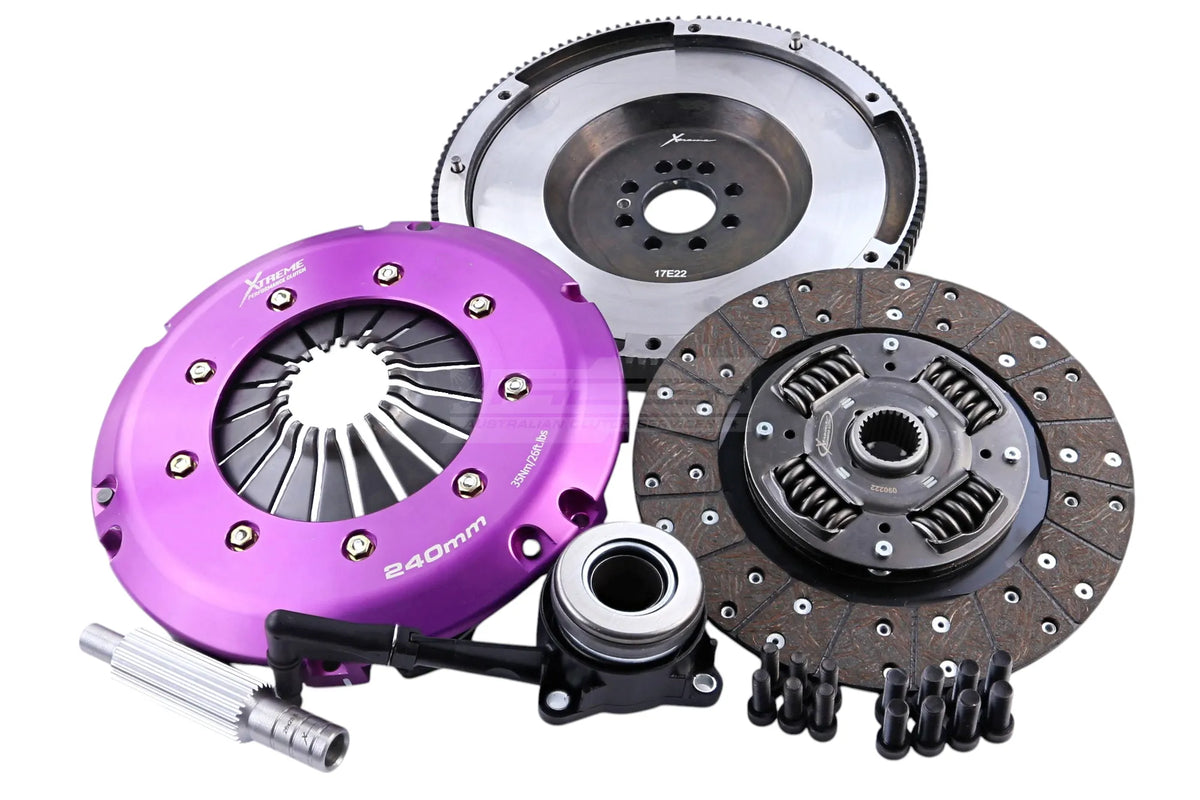

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc, matching flywheel and concentric slave cylinder (CSC), with the fitting components shown in the supplier photograph.
INSTALLATION AND USE Follow TSB-226 for disc orientation, assembly sequence and installed-clutch checks. Follow the supplied bedding-in instructions. Inspect the flywheel, gearbox spline and release system before fitting. Handle and bleed the concentric slave cylinder according to TSB-167; avoid over-pressurising or over-stroking it. The supplier clutch torque rating does not establish a safe limit for other drivetrain components. Replacing the dual-mass flywheel can increase gearbox noise at idle or under low-speed load.
