Xtreme Clutch Stage 1 Organic Clutch Kit Alfa Romeo Giulietta 2.0 JTDM with Flywheel and CSC KAR24615-1A

Xtreme Clutch Stage 1 organic clutch kit for the listed Alfa Romeo Giulietta 2.0 JTDM. Intended for performance street applications while retaining the engagement characteristics of an organic friction disc. This package includes a dual-mass flywheel and concentric slave cylinder.

FITMENT
Alfa Romeo Giulietta 2.0 JTDM, April 2010–December 2020
Engine: 940 A4.000, 552 83 099 1956 cc, 125 kW
Manual-transmission applications only. Match the engine code, gearbox input spline, flywheel and release system before ordering.

SPECIFICATIONS
Part number: KAR24615-1A
Stage: 1
Construction: single plate
Friction disc: organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Flywheel step: -7.4 mm
Clamp load: 1300 kg
Included flywheel: dual mass

PURCHASED PARTS PACKAGE

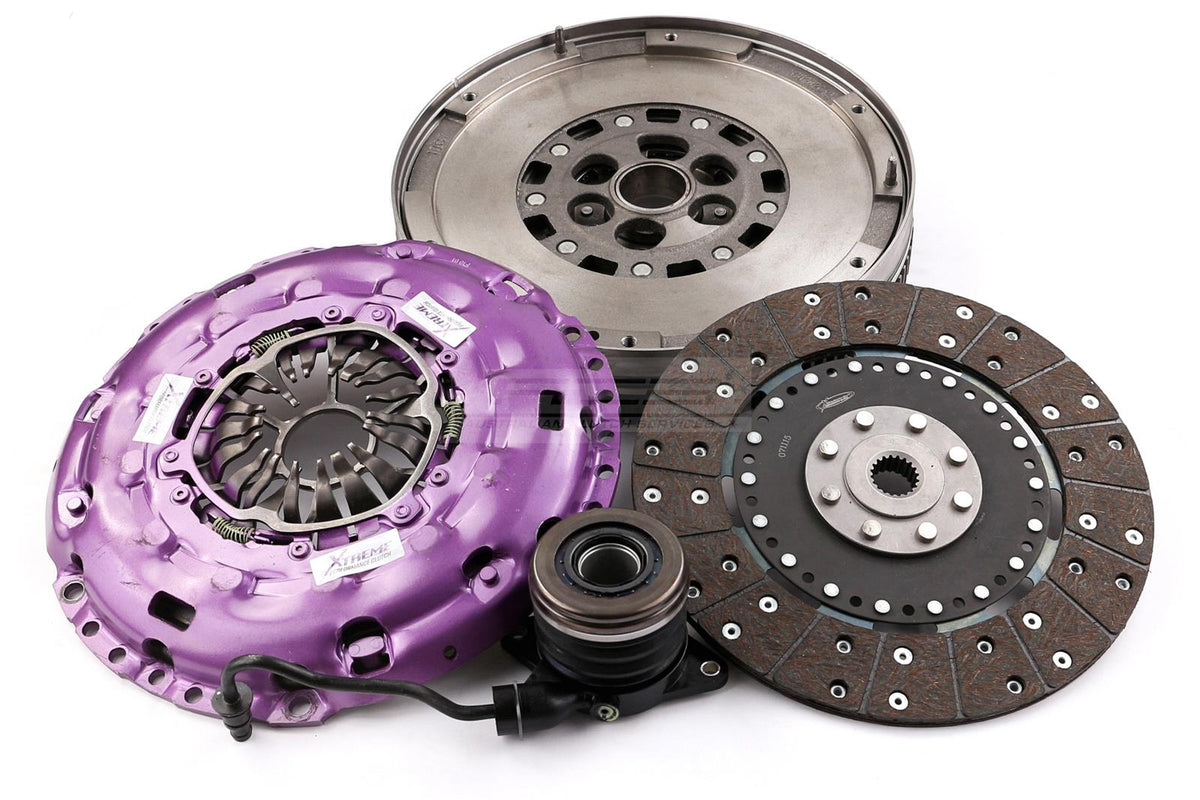

Heavy-duty pressure plate, organic friction disc, dual-mass flywheel and concentric slave cylinder (CSC), with the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Inspect the flywheel, gearbox spline and release system before fitting. Follow the supplied installation and bedding-in instructions. The supplier torque rating applies to the clutch and does not establish a safe limit for the gearbox or other drivetrain components.
