Xtreme Clutch Stage 1 organic clutch kit for the listed Alfa Romeo Giulietta 2.0 JTDM. Intended for performance street applications while retaining the engagement characteristics of an organic friction disc.
FITMENT Alfa Romeo Giulietta 2.0 JTDM, April 2010–December 2020 Engine: 940 A4.000, 552 83 099 1956 cc, 125 kW Manual-transmission applications only. Match the engine code, gearbox input spline, flywheel and release system before ordering.
SPECIFICATIONS Part number: KAR24415-1A Stage: 1 Construction: single plate Friction disc: organic Disc diameter: 240 mm Input spline: 23 teeth, 26 mm diameter Supplier-rated torque capacity: 600 Nm

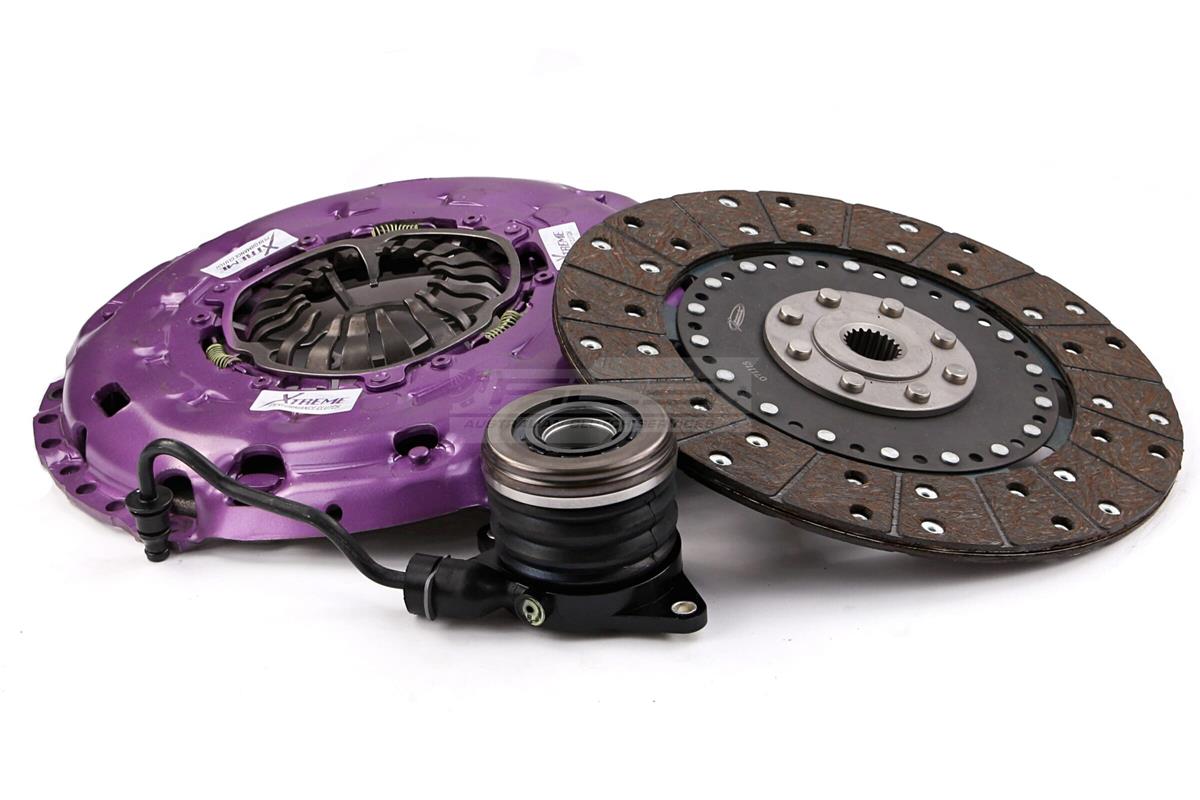

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, organic friction disc and fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Inspect the flywheel, gearbox spline and release system before fitting. Follow the supplied installation and bedding-in instructions. The supplier torque rating applies to the clutch and does not establish a safe limit for the gearbox or other drivetrain components.
