Xtreme Clutch flywheel for compatible Xtreme Clutch applications in the Honda City / Jazz. Confirm the exact Xtreme Clutch kit, engine and manual gearbox combination before ordering. Do not assume compatibility with an original-equipment or another brand’s clutch.
FITMENT Honda City (GM2) February 2009 onwards — 1.5 i-VTEC, L15-A7 1497 cc, 88 kW. Honda City (GM6) January 2014 onwards — 1.5 i-VTEC, L15-A7, L15Z1 1497 cc, 88 kW. Honda Jazz (GE6 / GG3 / GG6) July 2008 onwards — 1.3, L13Z1, L13Z2 1339 cc, 73 kW. Honda Jazz (GE8) July 2008–June 2014 — 1.5 i-VTEC, L15-A7 1496 cc, 88 kW. Honda Jazz (GK5) September 2014 onwards — 1.5, L15A, L15Z2, L15Z5 1497 cc, 88 kW. Manual-transmission applications only. Confirm the gearbox and clutch specification; a matching vehicle name alone does not establish compatibility.
SPECIFICATIONS Part number: FHN015C Flywheel design: single mass Material: Chromoly steel

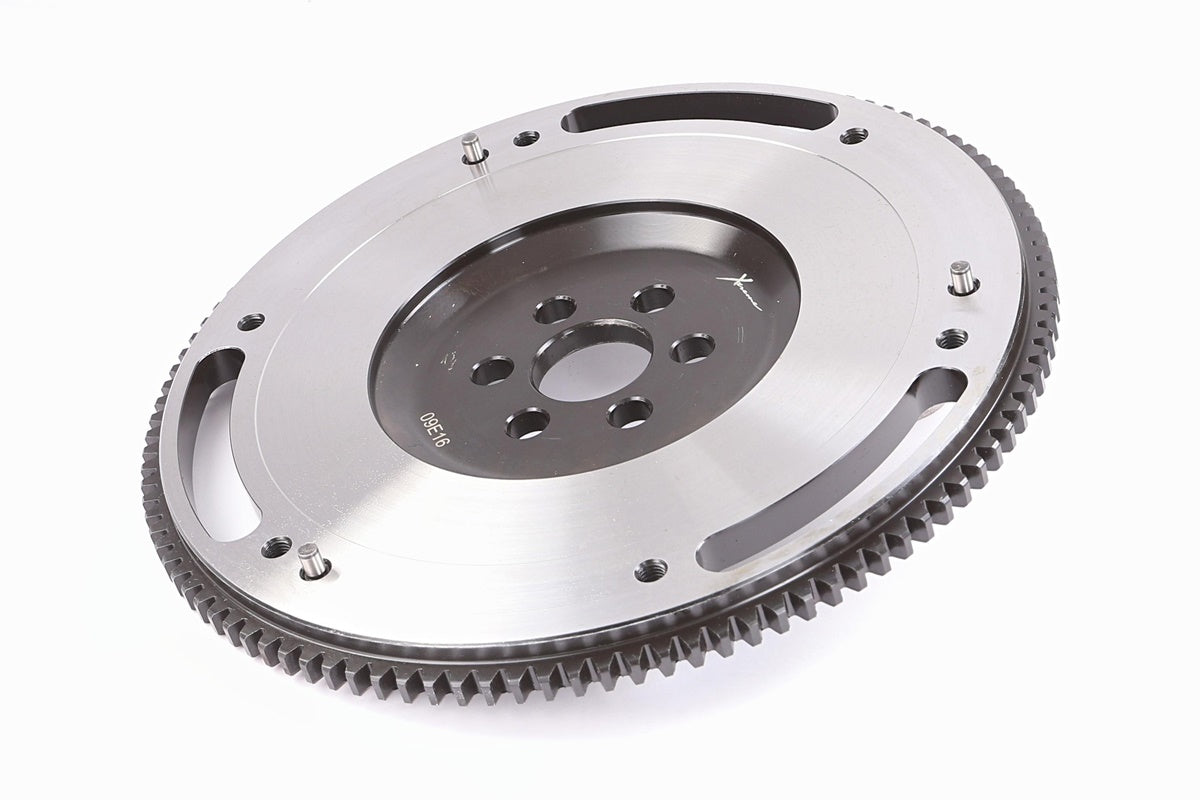

PURCHASED PARTS PACKAGE One flywheel as shown in the supplier photograph. Clutch disc, pressure plate, release components and installation hardware are not included unless supplied separately.
INSTALLATION AND USE Check the crankshaft mounting pattern, starter engagement, ring gear and clutch operating height before installation. Follow the fitting instructions for the specific flywheel and clutch combination. Use the specified fasteners and tightening procedure.
