HKS Oil Cooler Kit Black Toyota GR Yaris / GRMN Yaris (GXPA16) 15004-AT113
1 208 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description

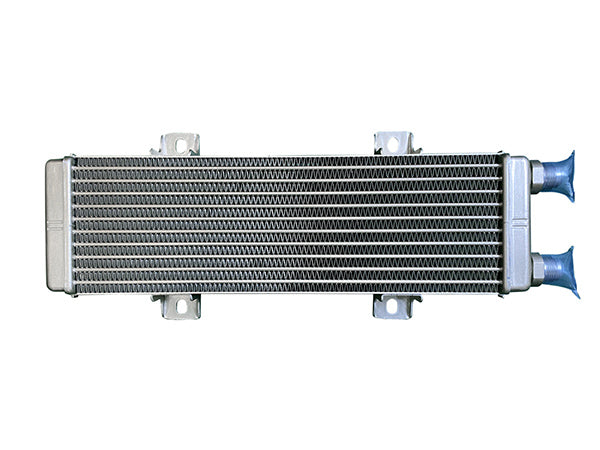

HKS S-type oil cooler kit for the G16E-GTS-powered GR Yaris. The compact turn-flow core mounts in front of the radiator.
FITMENT Toyota GR Yaris (GXPA16) September 2020–March 2024 — G16E-GTS. Toyota GRMN Yaris (GXPA16) January–February 2022 — G16E-GTS. Confirm the exact vehicle and supplied manual before installation.
SPECIFICATIONS Part number: 15004-AT113 Core: 412 × 114 × 40 mm Rows: 10, turn-flow design Layout: HKS S type Hose size: AN10 Core mounting position: in front of radiator

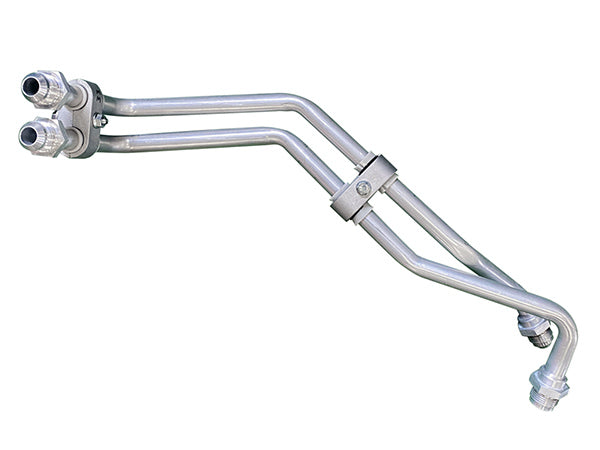

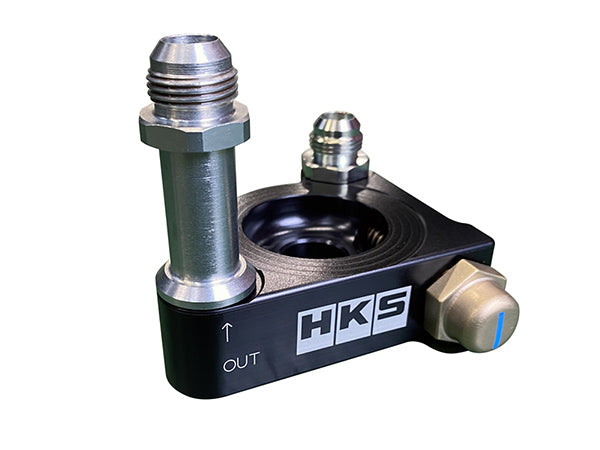

PURCHASED PARTS PACKAGE Turn-flow oil cooler core, billet-aluminium oil-filter mount / sandwich plate, oil filter 52009-AK009, two aluminium pipes, four oil hoses, mounting brackets, seals and fitting hardware.

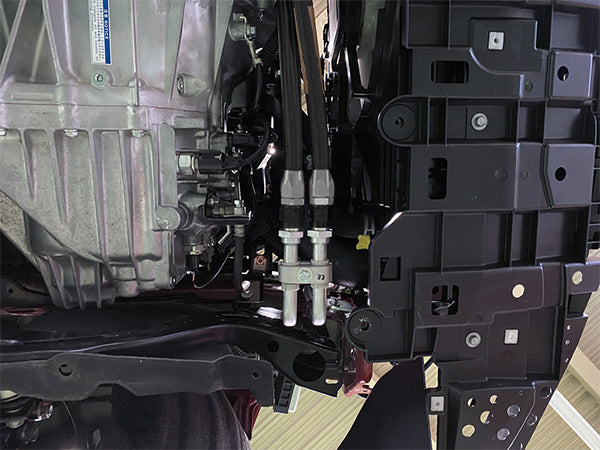

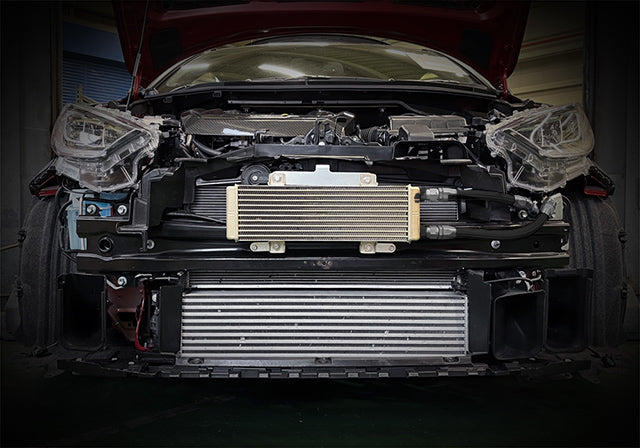

INSTALLATION AND USE Professional installation is required. The HKS instructions remove the front bumper absorber and trim the radiator upper air guide and intake duct. Allow approximately 0.5 litre of additional engine oil and set the final level using the dipstick. Use HKS oil filter Type 5, 52009-AK009, for subsequent filter changes.
