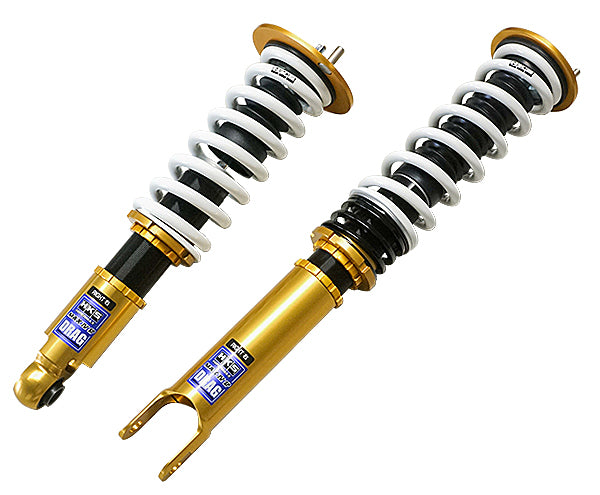

HKS MAX IV SP Drag Coilovers Nissan Skyline GT-R (BNR32) 80250-AN004D

80250-AN004D

FITMENT
Nissan Skyline GT-R (BNR32) 1989-1994

GENERAL FEATURES
Series - MAX IV SP DRAG
Nissan Skyline GT-R (BNR32) - Engine - RB26DETT / Make to order item This product is designed for drag racing. Please be careful when you drive on public roads.

FRONT FEATURES
Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 88(9)
Nissan Skyline GT-R (BNR32) - Spring free height, mm - 250
Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 1200/570
Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -34(0 - -68)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - -20 ( 2 )
Damping force (Rebound/Damping)N* - 1200 / 570
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 51 / 55

REAR FEATURES
Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 59(6)
Nissan Skyline GT-R (BNR32) - Spring free height, mm - 250
Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 2000/370
Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -19(0 - 41)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 2000 / 370
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 61 / 98

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80250-AN004D.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
