HKS Hipermax Touring Sp Spring Kit Toyota GR Supra (DB06) / Toyota GR Supra (DB02) / Toyota GR Supra (DB42) / Toyota GR Supra (DB22) / BMW Z4 (HF30T(G29)) 80280-AT001

80280-AT001

FITMENT
Toyota GR Supra (DB06) 2022-
Toyota GR Supra (DB02) 2020-
Toyota GR Supra (DB42) 2019-
Toyota GR Supra (DB22) 2019-
BMW Z4 (HF30T(G29)) 2019-

GENERAL FEATURES
Series - Touring
Toyota GR Supra (DB06) - Engine - B58B30B
Toyota GR Supra (DB02) - Engine - B58 / • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. • Separate purchase of Suspension Error Canceler (SEC, 45012-AT001) is NOT required. Not compatible with SZ grade.
Toyota GR Supra (DB42) - Engine - B58 / • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. • Separate purchase of Suspension Error Canceler (SEC, 45012-AT001) is NOT required. Not compatible with SZ grade.
Toyota GR Supra (DB22) - Engine - B48 / • Factory presets set to the height for RZ (DB42/DB02). Recommended setting for SZ-R (DB22) is the height at the test. (Ride height data at the test - F=-18, R=-19) • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. • Separate purchase of Suspension Error Canceler (SEC, 45012-AT001) is NOT required. Not compatible with SZ grade.
BMW Z4 (HF30T(G29)) - Engine - B58B30B / • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. Compatible with the vehicle with Adaptive M suspension.

FRONT FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 43(4.3)
Toyota GR Supra (DB06) - Spring free height, mm - Special
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -25(-25 - -52)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 43(4.3)
Toyota GR Supra (DB02) - Spring free height, mm - Special
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -29(-29 - -52)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 43(4.3)
Toyota GR Supra (DB42) - Spring free height, mm - Special
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -25(-25 - -48)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 43(4.3)
Toyota GR Supra (DB22) - Spring free height, mm - Special
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -16(-16 - -39)
BMW Z4 (HF30T(G29)) - Spring rate N/mm (kgf/mm) - 43(4.3)
BMW Z4 (HF30T(G29)) - Spring free height, mm - Special
BMW Z4 (HF30T(G29)) - Damping force at 0.1 m/s, rebound/compression, N - -
BMW Z4 (HF30T(G29)) - Vehicle height (highest - lowest), mm - -21(-21 - -44)

REAR FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 117(11.9)
Toyota GR Supra (DB06) - Spring free height, mm - Special
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -18(-18 - -55)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 117(11.9)
Toyota GR Supra (DB02) - Spring free height, mm - Special
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -24(-24 - -57)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 117(11.9)
Toyota GR Supra (DB42) - Spring free height, mm - Special
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -20(-20 - -53)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 117(11.9)
Toyota GR Supra (DB22) - Spring free height, mm - Special
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - -
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -19(-19 - -52)
BMW Z4 (HF30T(G29)) - Spring rate N/mm (kgf/mm) - 117(11.9)
BMW Z4 (HF30T(G29)) - Spring free height, mm - Special
BMW Z4 (HF30T(G29)) - Damping force at 0.1 m/s, rebound/compression, N - -
BMW Z4 (HF30T(G29)) - Vehicle height (highest - lowest), mm - -19(-19 - -52)

PURCHASED PARTS PACKAGE

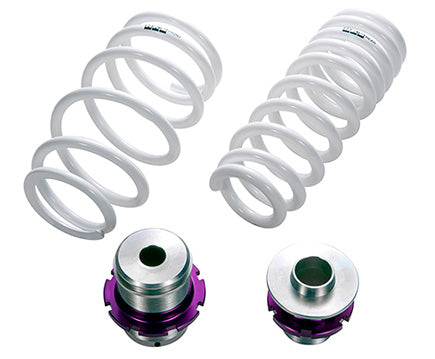

HKS lowering spring kit under manufacturer part number 80280-AT001. Uses the original shock absorbers. Includes ride height adjusters, rear bump rubbers and rear dust boots. BMW Z4 applications require Adaptive M Suspension. Follow the vehicle-specific bump rubber and packer instructions in the manufacturer reference.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
