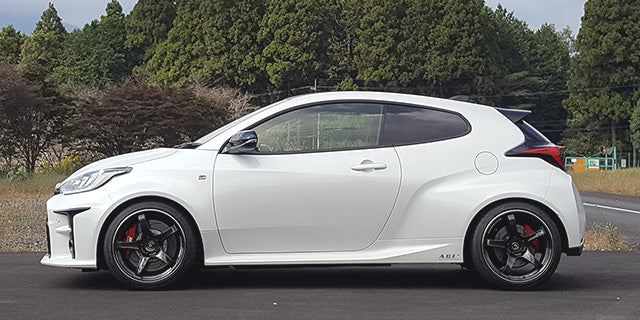

HKS Hipermax S Coilovers Toyota GR Yaris (GXPA16) 80330-AT025

80330-AT025

FITMENT
Toyota GR Yaris (GXPA16) 2020-2024

GENERAL FEATURES
Series - S
Toyota GR Yaris (GXPA16) - Engine - G16E-GTS / * Not compatible with the model after 2024 late and 2WD, RC grade unconfirmed
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 200(Barrel)
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 564/437
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -26(0 - -46)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )※
Damping force (Rebound/Damping)N* - 564 / 437
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 45 / 61

REAR FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 250(Barrel)
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 373/432
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -26(0 - -47)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )※
Damping force (Rebound/Damping)N* - 373 / 432
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 49 / 65

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT025.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
