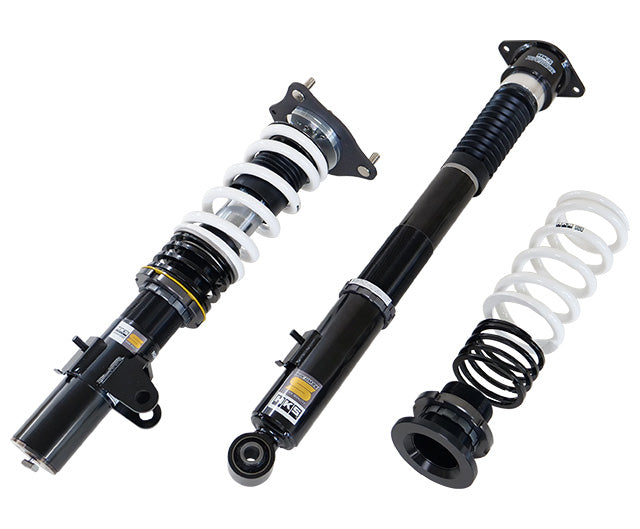

HKS Hipermax S Coilovers Honda Civic Type R (FL5) 80330-AH013CP

80330-AH013CP

FITMENT
Honda Civic Type R (FL5) 2022-

GENERAL FEATURES
Series - S
Honda Civic Type R (FL5) - Engine - K20C / Front Upper Mount Pillow ball type. With Suspension Error Canceler
Additional manufacturer specification data follows below.

FRONT FEATURES
Honda Civic Type R (FL5) - Spring rate N/mm (kgf/mm) - 98(10)
Honda Civic Type R (FL5) - Spring free height, mm - 170
Honda Civic Type R (FL5) - Damping force at 0.1 m/s, rebound/compression, N - 1050/623
Honda Civic Type R (FL5) - Vehicle height (highest - lowest), mm - -31(-26 - -44)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - ×
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 98 ( 10.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - +20 ( 2 )
Damping force (Rebound/Damping)N* - 1050 / 623
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 65 / 51

REAR FEATURES
Honda Civic Type R (FL5) - Spring rate N/mm (kgf/mm) - 78(8)
Honda Civic Type R (FL5) - Spring free height, mm - 170
Honda Civic Type R (FL5) - Damping force at 0.1 m/s, rebound/compression, N - 393/304
Honda Civic Type R (FL5) - Vehicle height (highest - lowest), mm - -22(0 - -41)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (7.6)
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 393 / 304
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 78 / 58

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AH013CP.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
