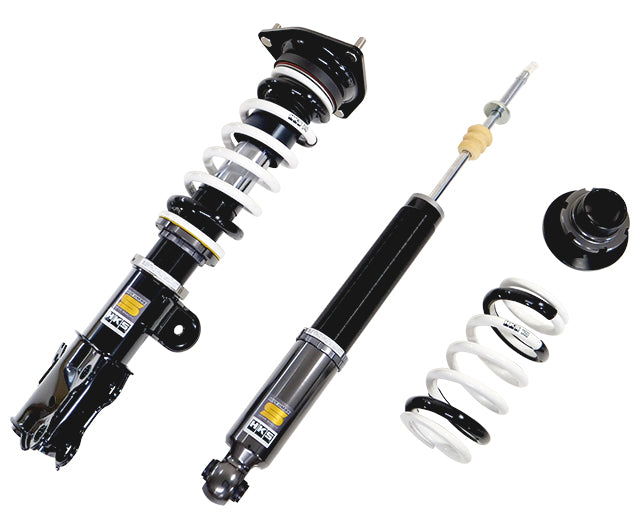

HKS Hipermax S Coilovers Toyota Voxy (ZWR90W) / Toyota Noah (ZWR90W) 80330-AT047

80330-AT047

FITMENT
Toyota Voxy (ZWR90W) 2022-
Toyota Noah (ZWR90W) 2022-

GENERAL FEATURES
Series - S
Toyota Voxy (ZWR90W) - Engine - 2ZR-FXE
Toyota Noah (ZWR90W) - Engine - 2ZR-FXE

FRONT FEATURES
Toyota Voxy (ZWR90W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZWR90W) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZWR90W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Voxy (ZWR90W) - Vehicle height (highest - lowest), mm - -41(0 - -74)
Toyota Noah (ZWR90W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZWR90W) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZWR90W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Noah (ZWR90W) - Vehicle height (highest - lowest), mm - -41(0 - -74)

REAR FEATURES
Toyota Voxy (ZWR90W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Voxy (ZWR90W) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZWR90W) - Damping force at 0.1 m/s, rebound/compression, N - 285/142
Toyota Voxy (ZWR90W) - Vehicle height (highest - lowest), mm - -39(-11 - -72)
Toyota Noah (ZWR90W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Noah (ZWR90W) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZWR90W) - Damping force at 0.1 m/s, rebound/compression, N - 285/142
Toyota Noah (ZWR90W) - Vehicle height (highest - lowest), mm - -39(-11 - -72)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT047.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
