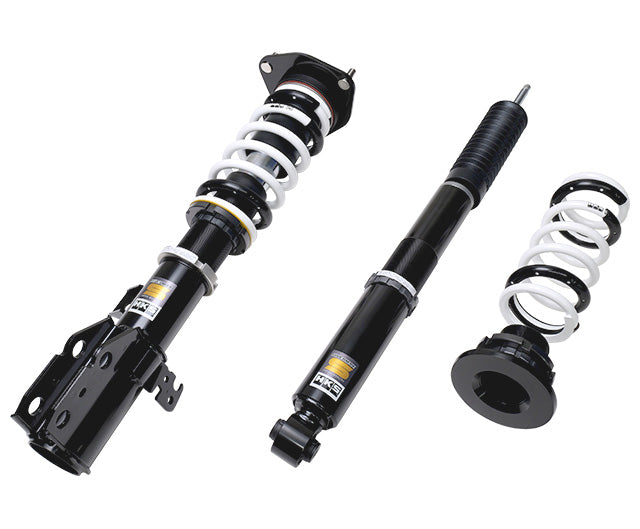

HKS Hipermax S Coilovers Toyota Voxy (ZRR80W, ZRR80G, ZRR85W, ZRR85G, ZWR80W, ZWR80G) / Toyota Esquire (ZRR80G, ZWR80G, ZRR85G) / Toyota Noah (ZRR80W, ZRR80G, ZRR85W, ZRR85G, ZWR80W, ZWR80G) 80330-AT041

80330-AT041

FITMENT
Toyota Voxy (ZRR80W) 2014-2021
Toyota Voxy (ZRR80G) 2014-2021
Toyota Voxy (ZRR85W) 2014-2021
Toyota Voxy (ZRR85G) 2014-2021
Toyota Voxy (ZWR80W) 2014-2021
Toyota Voxy (ZWR80G) 2014-2021
Toyota Esquire (ZRR80G) 2014-2021
Toyota Esquire (ZWR80G) 2014-2021
Toyota Esquire (ZRR85G) 2014-2021
Toyota Noah (ZRR80W) 2014-2021
Toyota Noah (ZRR80G) 2014-2021
Toyota Noah (ZRR85W) 2014-2021
Toyota Noah (ZRR85G) 2014-2021
Toyota Noah (ZWR80W) 2014-2021
Toyota Noah (ZWR80G) 2014-2021

GENERAL FEATURES
Series - S
Toyota Voxy (ZRR80W) - Engine - 3ZR-FAE / Data for 2WD model.
Toyota Voxy (ZRR80G) - Engine - 3ZR-FAE / Data for 2WD model. Vehicle height data is measureed on ZRR80W.
Toyota Voxy (ZRR85W) - Engine - 3ZR-FAE / Data for 4WD model.
Toyota Voxy (ZRR85G) - Engine - 3ZR-FAE / Data for 4WD model. Vehicle height data is measured on ZRR85W.
Toyota Voxy (ZWR80W) - Engine - 2ZR-FXE(2ZR-5JM) / Data for 2WD, "HYBRID" model.
Toyota Voxy (ZWR80G) - Engine - 2ZR-FXE(2ZR-5JM) / Data for 2WD, "HYBRID" model.
Toyota Esquire (ZRR80G) - Engine - 3ZR-FAE / Data for 2WD model. Vehicle height data is measureed on ZRR80W.
Toyota Esquire (ZWR80G) - Engine - 2ZR-FXE(2ZR-5JM) / Data for 2WD, "HYBRID" model.
Toyota Esquire (ZRR85G) - Engine - 3ZR-FAE / Data for 4WD model. Vehicle height data is measured on ZRR85W.
Toyota Noah (ZRR80W) - Engine - 3ZR-FAE / Data for 2WD model.
Toyota Noah (ZRR80G) - Engine - 3ZR-FAE / Data for 2WD model. Vehicle height data is measureed on ZRR80W.
Toyota Noah (ZRR85W) - Engine - 3ZR-FAE / Data for 4WD model.
Toyota Noah (ZRR85G) - Engine - 3ZR-FAE / Data for 4WD model. Vehicle height data is measured on ZRR85W.
Toyota Noah (ZWR80W) - Engine - 2ZR-FXE(2ZR-5JM) / Data for 2WD, "HYBRID" model.
Toyota Noah (ZWR80G) - Engine - 2ZR-FXE(2ZR-5JM) / Data for 2WD, "HYBRID" model.

FRONT FEATURES
Toyota Voxy (ZRR80W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZRR80W) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZRR80W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZRR80W) - Vehicle height (highest - lowest), mm - -49(-19 - -65)
Toyota Voxy (ZRR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZRR80G) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZRR80G) - Vehicle height (highest - lowest), mm - -49(-19 - -65)
Toyota Voxy (ZRR85W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZRR85W) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZRR85W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZRR85W) - Vehicle height (highest - lowest), mm - -48(-18 - -63)
Toyota Voxy (ZRR85G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZRR85G) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZRR85G) - Vehicle height (highest - lowest), mm - -48(-18 - -63)
Toyota Voxy (ZWR80W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZWR80W) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZWR80W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZWR80W) - Vehicle height (highest - lowest), mm - -35(-5 - -50)
Toyota Voxy (ZWR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Voxy (ZWR80G) - Spring free height, mm - 250(Barrel)
Toyota Voxy (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Voxy (ZWR80G) - Vehicle height (highest - lowest), mm - -49(-19 - -64)
Toyota Esquire (ZRR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Esquire (ZRR80G) - Spring free height, mm - 250(Barrel)
Toyota Esquire (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Esquire (ZRR80G) - Vehicle height (highest - lowest), mm - -49(-19 - -65)
Toyota Esquire (ZWR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Esquire (ZWR80G) - Spring free height, mm - 250(Barrel)
Toyota Esquire (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Esquire (ZWR80G) - Vehicle height (highest - lowest), mm - -42(-12 - -53)
Toyota Esquire (ZRR85G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Esquire (ZRR85G) - Spring free height, mm - 250(Barrel)
Toyota Esquire (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Esquire (ZRR85G) - Vehicle height (highest - lowest), mm - -48(-18 - -63)
Toyota Noah (ZRR80W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZRR80W) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZRR80W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZRR80W) - Vehicle height (highest - lowest), mm - -49(-19 - -65)
Toyota Noah (ZRR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZRR80G) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZRR80G) - Vehicle height (highest - lowest), mm - -49(-19 - -65)
Toyota Noah (ZRR85W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZRR85W) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZRR85W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZRR85W) - Vehicle height (highest - lowest), mm - -48(-18 - -63)
Toyota Noah (ZRR85G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZRR85G) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZRR85G) - Vehicle height (highest - lowest), mm - -48(-18 - -63)
Toyota Noah (ZWR80W) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZWR80W) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZWR80W) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZWR80W) - Vehicle height (highest - lowest), mm - -35(-5 - -50)
Toyota Noah (ZWR80G) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Noah (ZWR80G) - Spring free height, mm - 250(Barrel)
Toyota Noah (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 600/150
Toyota Noah (ZWR80G) - Vehicle height (highest - lowest), mm - -49(-19 - -64)

REAR FEATURES
Toyota Voxy (ZRR80W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZRR80W) - Spring free height, mm - 200
Toyota Voxy (ZRR80W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZRR80W) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Voxy (ZRR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZRR80G) - Spring free height, mm - 200
Toyota Voxy (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZRR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Voxy (ZRR85W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZRR85W) - Spring free height, mm - 200
Toyota Voxy (ZRR85W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZRR85W) - Vehicle height (highest - lowest), mm - -86(-64 - -121)
Toyota Voxy (ZRR85G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZRR85G) - Spring free height, mm - 200
Toyota Voxy (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZRR85G) - Vehicle height (highest - lowest), mm - -86(-64 - -121)
Toyota Voxy (ZWR80W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZWR80W) - Spring free height, mm - 200
Toyota Voxy (ZWR80W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZWR80W) - Vehicle height (highest - lowest), mm - -59(-37 - -94)
Toyota Voxy (ZWR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Voxy (ZWR80G) - Spring free height, mm - 200
Toyota Voxy (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Voxy (ZWR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Esquire (ZRR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Esquire (ZRR80G) - Spring free height, mm - 200
Toyota Esquire (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Esquire (ZRR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Esquire (ZWR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Esquire (ZWR80G) - Spring free height, mm - 200
Toyota Esquire (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Esquire (ZWR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Esquire (ZRR85G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Esquire (ZRR85G) - Spring free height, mm - 200
Toyota Esquire (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Esquire (ZRR85G) - Vehicle height (highest - lowest), mm - -86(-64 - -121)
Toyota Noah (ZRR80W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZRR80W) - Spring free height, mm - 200
Toyota Noah (ZRR80W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZRR80W) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Noah (ZRR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZRR80G) - Spring free height, mm - 200
Toyota Noah (ZRR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZRR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)
Toyota Noah (ZRR85W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZRR85W) - Spring free height, mm - 200
Toyota Noah (ZRR85W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZRR85W) - Vehicle height (highest - lowest), mm - -86(-64 - -121)
Toyota Noah (ZRR85G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZRR85G) - Spring free height, mm - 200
Toyota Noah (ZRR85G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZRR85G) - Vehicle height (highest - lowest), mm - -86(-64 - -121)
Toyota Noah (ZWR80W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZWR80W) - Spring free height, mm - 200
Toyota Noah (ZWR80W) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZWR80W) - Vehicle height (highest - lowest), mm - -59(-37 - -94)
Toyota Noah (ZWR80G) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Noah (ZWR80G) - Spring free height, mm - 200
Toyota Noah (ZWR80G) - Damping force at 0.1 m/s, rebound/compression, N - 300/170
Toyota Noah (ZWR80G) - Vehicle height (highest - lowest), mm - -57(-35 - -92)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT041.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
