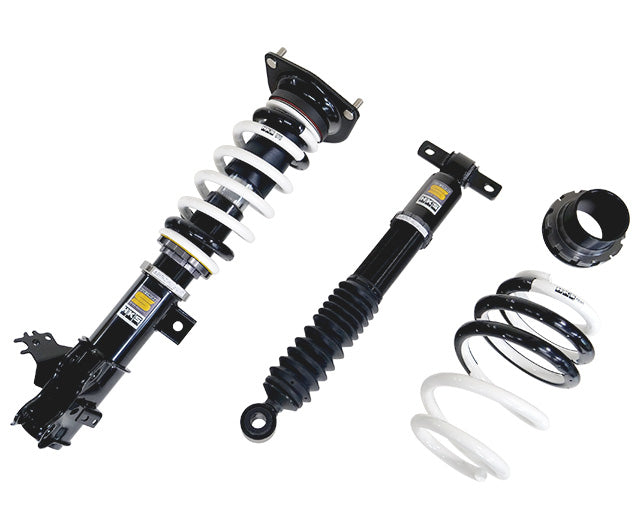

HKS Hipermax S Coilovers Toyota Vellfire (TAHA40W) / Toyota Vellfire (AAHH40W) 80330-AT033

80330-AT033

FITMENT
Toyota Vellfire (TAHA40W) 2023-
Toyota Vellfire (AAHH40W) 2023-

GENERAL FEATURES
Series - S
Toyota Vellfire (TAHA40W) - Engine - T24A-FTS / Z Premier Grade.
Toyota Vellfire (AAHH40W) - Engine - A25A-FXS / Vehicle height data is measured on TAHA40W.

FRONT FEATURES
Toyota Vellfire (TAHA40W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (TAHA40W) - Spring free height, mm - 250(Special)
Toyota Vellfire (TAHA40W) - Damping force at 0.1 m/s, rebound/compression, N - 559/294
Toyota Vellfire (TAHA40W) - Vehicle height (highest - lowest), mm - -37(+6 - -57)
Toyota Vellfire (AAHH40W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (AAHH40W) - Spring free height, mm - 250(Special)
Toyota Vellfire (AAHH40W) - Damping force at 0.1 m/s, rebound/compression, N - 559/294
Toyota Vellfire (AAHH40W) - Vehicle height (highest - lowest), mm - -37(+6 - -57)

REAR FEATURES
Toyota Vellfire (TAHA40W) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Vellfire (TAHA40W) - Spring free height, mm - Special
Toyota Vellfire (TAHA40W) - Damping force at 0.1 m/s, rebound/compression, N - 613/432
Toyota Vellfire (TAHA40W) - Vehicle height (highest - lowest), mm - -29(+1 - -47)
Toyota Vellfire (AAHH40W) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Vellfire (AAHH40W) - Spring free height, mm - Special
Toyota Vellfire (AAHH40W) - Damping force at 0.1 m/s, rebound/compression, N - 613/432
Toyota Vellfire (AAHH40W) - Vehicle height (highest - lowest), mm - -29(+1 - -47)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT033.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
