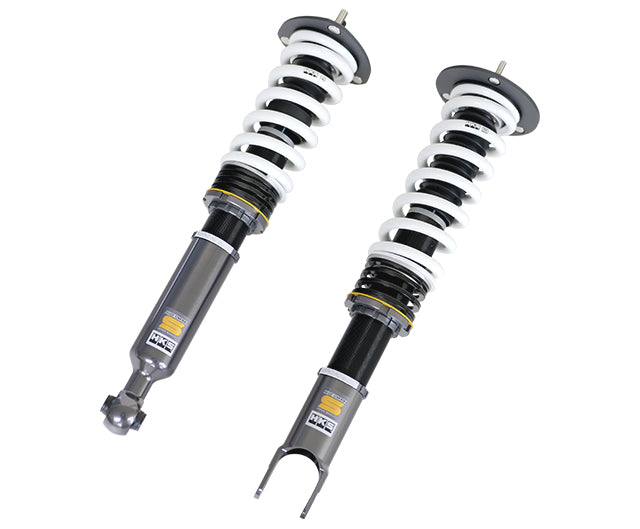

HKS Hipermax S Coilovers Toyota Supra (JZA80) 80330-AT010

80330-AT010

FITMENT
Toyota Supra (JZA80) 1993-2002

GENERAL FEATURES
Series - S
Toyota Supra (JZA80) - Engine - 2JZ-GTE / Not compatible with vehicles equipped with REAS (can be installed by removing the hydraulic system).
Toyota Supra (JZA80) - Engine - 2JZ-GE / Not compatible with vehicles equipped with REAS (can be installed by removing the hydraulic system).

FRONT FEATURES
Toyota Supra (JZA80) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Supra (JZA80) - Spring free height, mm - 200
Toyota Supra (JZA80) - Damping force at 0.1 m/s, rebound/compression, N - 1775/637
Toyota Supra (JZA80) - Vehicle height (highest - lowest), mm - -31(0 - -92)

REAR FEATURES
Toyota Supra (JZA80) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Supra (JZA80) - Spring free height, mm - 250
Toyota Supra (JZA80) - Damping force at 0.1 m/s, rebound/compression, N - 912/422
Toyota Supra (JZA80) - Vehicle height (highest - lowest), mm - -13(0 - -77)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT010.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
