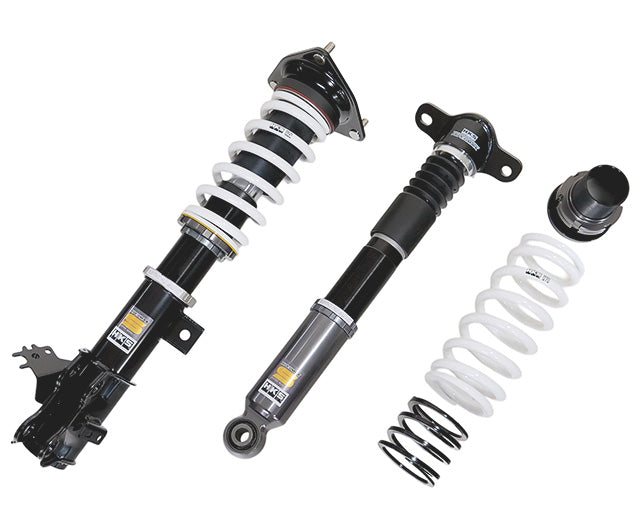

HKS Hipermax S Coilovers Toyota Rav4 (MXAA54) / Toyota Rav4 (AXAH54) / Toyota Harrier (AXUH80) / Toyota Harrier (AXUH85) / Toyota Harrier (MXUA80) / Toyota Harrier (MXUA85) 80330-AT028

80330-AT028

FITMENT
Toyota Rav4 (MXAA54) 2019-2025
Toyota Rav4 (AXAH54) 2019-2025
Toyota Harrier (AXUH80) 2020-
Toyota Harrier (AXUH85) 2020-
Toyota Harrier (MXUA80) 2020-2026
Toyota Harrier (MXUA85) 2020-2026

GENERAL FEATURES
Series - S
Toyota Rav4 (MXAA54) - Engine - M20A-FKS
Toyota Rav4 (AXAH54) - Engine - A25A-FXS / HYBRID
Toyota Harrier (AXUH80) - Engine - A25A-FXS / Hybrid 2WD vehicle with full Modellista aero package.
Toyota Harrier (AXUH85) - Engine - A25A-FXS / Hybrid 4WD
Toyota Harrier (MXUA80) - Engine - M20A-FKS / 2WD
Toyota Harrier (MXUA85) - Engine - M20A-FKS / 4WD

FRONT FEATURES
Toyota Rav4 (MXAA54) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Rav4 (MXAA54) - Spring free height, mm - 220(Barrel)
Toyota Rav4 (MXAA54) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Rav4 (MXAA54) - Vehicle height (highest - lowest), mm - -34(27 - -68)
Toyota Rav4 (AXAH54) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Rav4 (AXAH54) - Spring free height, mm - 220(Barrel)
Toyota Rav4 (AXAH54) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Rav4 (AXAH54) - Vehicle height (highest - lowest), mm - -34(27 - -68)
Toyota Harrier (AXUH80) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (AXUH80) - Spring free height, mm - 220(Barrel)
Toyota Harrier (AXUH80) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Harrier (AXUH80) - Vehicle height (highest - lowest), mm - -38(23 - -71)
Toyota Harrier (AXUH85) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (AXUH85) - Spring free height, mm - 220(Barrel)
Toyota Harrier (AXUH85) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Harrier (AXUH85) - Vehicle height (highest - lowest), mm - -32(29 - -66)
Toyota Harrier (MXUA80) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (MXUA80) - Spring free height, mm - 220(Barrel)
Toyota Harrier (MXUA80) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Harrier (MXUA80) - Vehicle height (highest - lowest), mm - -32(29 - -66)
Toyota Harrier (MXUA85) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (MXUA85) - Spring free height, mm - 220(Barrel)
Toyota Harrier (MXUA85) - Damping force at 0.1 m/s, rebound/compression, N - 432/304
Toyota Harrier (MXUA85) - Vehicle height (highest - lowest), mm - -33(28 - -67)

REAR FEATURES
Toyota Rav4 (MXAA54) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Rav4 (MXAA54) - Spring free height, mm - 220(Barrel)
Toyota Rav4 (MXAA54) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Rav4 (MXAA54) - Vehicle height (highest - lowest), mm - -29(18 - -72)
Toyota Rav4 (AXAH54) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Rav4 (AXAH54) - Spring free height, mm - 220(Barrel)
Toyota Rav4 (AXAH54) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Rav4 (AXAH54) - Vehicle height (highest - lowest), mm - -29(26 - -64)
Toyota Harrier (AXUH80) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Harrier (AXUH80) - Spring free height, mm - 220(Barrel)
Toyota Harrier (AXUH80) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Harrier (AXUH80) - Vehicle height (highest - lowest), mm - -27(25 - -62)
Toyota Harrier (AXUH85) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Harrier (AXUH85) - Spring free height, mm - 220(Barrel)
Toyota Harrier (AXUH85) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Harrier (AXUH85) - Vehicle height (highest - lowest), mm - -32(23 - -67)
Toyota Harrier (MXUA80) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Harrier (MXUA80) - Spring free height, mm - 220(Barrel)
Toyota Harrier (MXUA80) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Harrier (MXUA80) - Vehicle height (highest - lowest), mm - -24(24 - -59)
Toyota Harrier (MXUA85) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Harrier (MXUA85) - Spring free height, mm - 220(Barrel)
Toyota Harrier (MXUA85) - Damping force at 0.1 m/s, rebound/compression, N - 397/333
Toyota Harrier (MXUA85) - Vehicle height (highest - lowest), mm - -32(23 - -67)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT028.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
